Steel Structure Material PE Weave Bubble Wrap Aluminium Foil Foam
Product Details:
| Place of Origin: | China |
| Brand Name: | HUIYI |
| Certification: | ISO9001 SGS |
| Model Number: | QCFB06 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25tons each thickness |
|---|---|
| Price: | Negotiation |
| Packaging Details: | water proof paper & plastic film & protective steel sheet & protecting plate of inner & side panel & outside and inside diameter ring & metal band strapping & circumferential bands in steel |
| Delivery Time: | 15-35days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 5000 tons per month |
|
Detail Information |
|||
| Product Name: | Building Material Alu-bubble Foil | Usage: | Building Steel Structure Material |
|---|---|---|---|
| Material: | Aluminum, PE Weave +aluminum Foil | Roll Size: | 1.2*40m/roll (customized Size Is Available) |
| Bubble Thickness: | 2.5-8 Mm | Width: | 50mm-1500mm Customized |
| Application: | Construction | Function: | Heat Resistant, Fireproof, Waterproof |
| Highlight: | Steel Structure aluminium foil foam,Steel Structure bubble wrap aluminium,PE weave bubble wrap aluminium |
||
Product Description

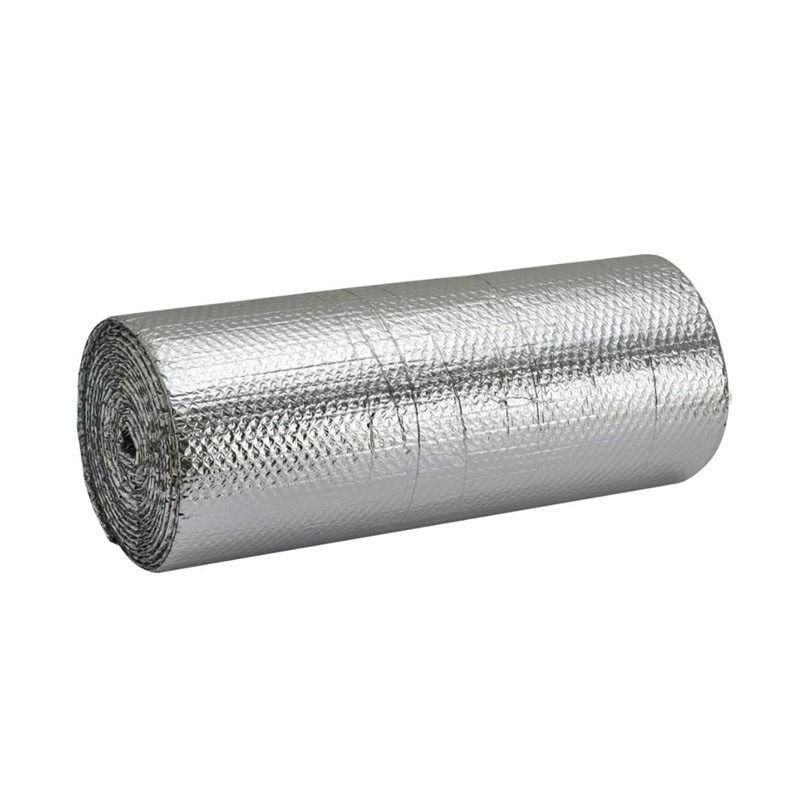

Building Steel Structure Material ALU-BUBBLE FOIL
Alu-bubble foil introduction:
Alu-bubble foil a new environmentally friendly heat insulation material, which can add a layer of PE woven cloth on the basis of the original aluminum foil and polyethyene, which greatly enhances tensile strength and tering-resistance strength without changing its original characterstics.
Alu-bubble foil specifications :
| Product name | Building steel structure material alu-bubble foil |
| Structure | Alu Foil/Bubble/Alu foil |
| Bubble size | Ø 10mm, H 3mm |
| Standard roll size | 1.2*40m (Can be customized) |
| Weight | 160-360 g/m2 |
| MOQ | 1 container |
| PROPERTIES | DATE | Unit |
| Reflectivity | 97 | % |
| Temperature Range | -40~+100 | ℃ |
| Emissivity | 0.03 | COEF |
| Thermal Conductivity | 0.032 | W/m0 |
| Water Vapour Transmission | 0.012 | G/M2KPA |
| Tensile Strength(MD) | 13.43 | MPA |
| Tensile Strength(TD) | 14.58 | MPA |

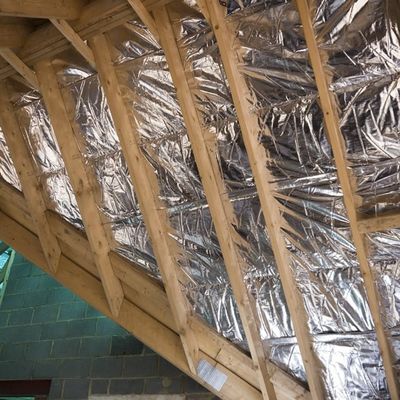

Here are the loading and application picutres of alu-bubble foil:
Alu-bubble foil application :
1. Roof Underlayments
2. Homes
3. Metal & Steel Buildings
4. Attics
5. Ceilings
6. Floors
7. Basement Walls
8. Post frame buildings
9. Temperature sensitive storage areas
10. Garage Doors
11. Pole barns
12. Poultry barns
13. Crawl Spaces
14. Animal kennels
FAQ:
1.If you want to get a quotation ,what information need be provided to you?
A: Size(Width*Length*Thickness),color and the quantity demand and any other needs.
2. When can I get price after I send an enquiry?
A: We can guarantee that you can have the price as soon as possible
