• 5mm PE Weave ALU Bubble Foil , Fireproof Aluminium Foil Bubble Wrap
  • 5mm PE Weave ALU Bubble Foil , Fireproof Aluminium Foil Bubble Wrap
  • 5mm PE Weave ALU Bubble Foil , Fireproof Aluminium Foil Bubble Wrap
5mm PE Weave ALU Bubble Foil , Fireproof Aluminium Foil Bubble Wrap

5mm PE Weave ALU Bubble Foil , Fireproof Aluminium Foil Bubble Wrap

Product Details:

Place of Origin: China
Brand Name: HUIYI
Certification: ISO9001 SGS
Model Number: QCFB06

Payment & Shipping Terms:

Minimum Order Quantity: 25tons each thickness
Price: Negotiation
Packaging Details: water proof paper & plastic film & protective steel sheet & protecting plate of inner & side panel & outside and inside diameter ring & metal band strapping & circumferential bands in steel
Delivery Time: 15-35days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000 tons per month
Get Best Price Contact Now

Detail Information

Product Name: PE Weave +aluminum Foil Alu-bubble Foil Type: Aluminum, Other Heat Insulation Materials
Material: Aluminum, PE Weave +aluminum Foil Roll Size: 1.2*40m/roll (customized Size Is Available)
Bubble Thickness: 2.5-8 Mm Width: 50mm-1500mm Customized
Application: Other , House Function: Heat Resistant, Fireproof, Waterproof
Highlight:

PE Weave ALU Bubble Foil

,

5mm ALU Bubble Foil

,

fireproof aluminium foil bubble wrap

Product Description

5mm PE weave +aluminum foil ALU-BUBBLE FOIL



Alu-bubble foil introduction:



Alu-bubble foil a new environmentally friendly heat insulation material, which can add a layer of PE woven cloth on the basis of the original aluminum foil and polyethyene, which greatly enhances tensile strength and tering-resistance strength without changing its original characterstics.



Alu-bubble foil specifications :



TECHNICAL SPECIFICATIONS
CODE RIF-M
Thickness 0.15mm
Grammage (g/m2) 140g/square meter
Width 1000,1500(Min350—Max2050)mm
Length 50—2000m
Core 2inches, 3inches,6inches
Physical Properties Unit Typical value
  MD N/25mm 400
Tensile Strength TD N/25mm 400
  MD % 23
Elongation TD % 21
Peel Strength N/25mm Interior layer 3.3
Exterior layer 3.7
Permeability 2000mm water column,2h Impermeable

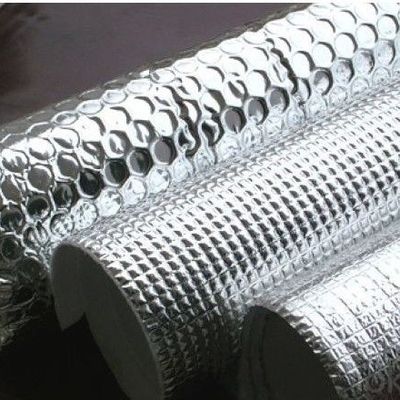

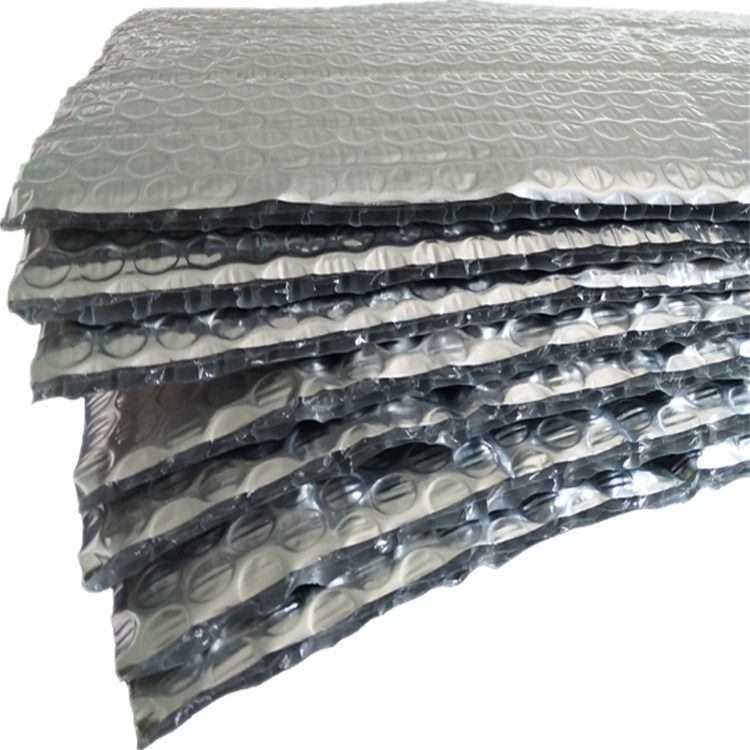

Here are the loading and application picutres of alu-bubble foil:






5mm PE Weave ALU Bubble Foil , Fireproof Aluminium Foil Bubble Wrap 05mm PE Weave ALU Bubble Foil , Fireproof Aluminium Foil Bubble Wrap 1



Alu-bubble foil application and Instruction



For exterior wall and roof of all kinds of building for insulating. Such as factory,warehouse,residence community,cottage,office building,public building.

For metal structure building insulating.Such as colorbond house,metal structure grain depot.



Roof Insulation Foil is an effective and cost efficient protection from the ravages of harsh weather conditions ,providing an excellent insulation against moisture vapour.It is suitable to be used in roofing insulation as reflection or heat barrier in industrial, commercial and residential buildings.



Alu-bubble foil are widely used for truck canopy, ship cover and cargo storage or transportation in mineral factories and ports, also can be used as tents in outside , travel and calamities, the tarpaulin is to cover and protect the goods in the open air.



Alu-bubble foil are also can be used in industry, irrigation dam, windbreak, garden, warehouse, outdoor storage cover, truck cover, boat cover, camping, tents etc.



FAQ:



1.If you want to get a quotation ,what information need be provided to you?
A: Size(Width*Length*Thickness),color and the quantity demand and any other needs.

2. When can I get price after I send an enquiry?

A: We can guarantee that you can have the price as soon as possible
