Waterproof LDPE Alu Bubble Foil Insulation For outdoor

Waterproof LDPE Alu Bubble Foil Insulation For outdoor

Product Details:

Place of Origin: China
Brand Name: HUIYI
Certification: ISO9001 SGS
Model Number: QCFB06

Payment & Shipping Terms:

Minimum Order Quantity: 25tons each thickness
Price: Negotiation
Packaging Details: water proof paper & plastic film & protective steel sheet & protecting plate of inner & side panel & outside and inside diameter ring & metal band strapping & circumferential bands in steel
Delivery Time: 15-35days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000 tons per month
Get Best Price Contact Now

Detail Information

Product Name: Waterproof Alu-bubble Foil Raw Material: Alu+LDPE
Surface Treatmen: Anti-glare Coating Is Available Roll Size: 1.2*40m/roll (customized Size Is Available)
Bubble Height: 3, 4, 6, 7, 8, 9, 15mm Bubble Diameter: 10mm, 20mm
Application: Outdoor Function: Heat Resistant, Fireproof, Waterproof
Highlight:

LDPE Alu Bubble Foil

,

Waterproof Alu Bubble Foil

,

LDPE aluminum bubble insulation

Product Description

Alu+LDPE ALU-BUBBLE FOIL WATERPROOF



Alu-bubble foil introduction:



Alu-bubble foil a new environmentally friendly heat insulation material, which can add a layer of PE woven cloth on the basis of the original aluminum foil and polyethyene, which greatly enhances tensile strength and tering-resistance strength without changing its original characterstics.



Alu-bubble foil specifications :



TECHNICAL SPECIFICATIONS
CODE RIF-M
Thickness 0.15mm
Grammage (g/m2) 140g/square meter
Width 1000,1500(Min350—Max2050)mm
Length 50—2000m
Core 2inches, 3inches,6inches
Physical Properties Unit Typical value
  MD N/25mm 400
Tensile Strength TD N/25mm 400
  MD % 23
Elongation TD % 21
Peel Strength N/25mm Interior layer 3.3
Exterior layer 3.7
Permeability 2000mm water column,2h Impermeable

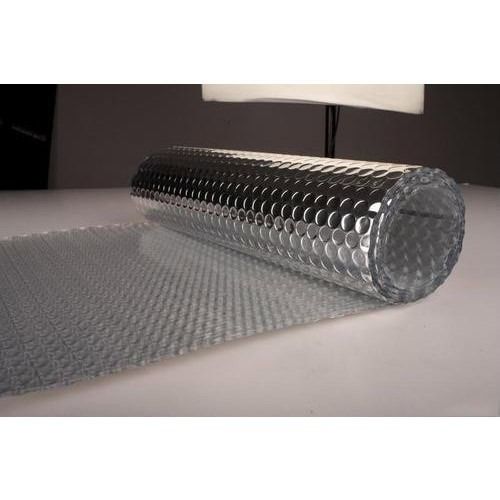

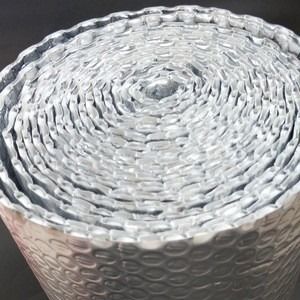

Here are the loading and application picutres of alu-bubble foil:



Waterproof LDPE Alu Bubble Foil Insulation For outdoor 0Waterproof LDPE Alu Bubble Foil Insulation For outdoor 1



FAQ:



1.If you want to get a quotation ,what information need be provided to you?
A: Size(Width*Length*Thickness),color and the quantity demand and any other needs.

2. When can I get price after I send an enquiry?

We can guarantee that you can have the price as soon as possible



Want to Know more details about this product
I am interested in Waterproof LDPE Alu Bubble Foil Insulation For outdoor could you send me more details such as type, size, quantity, material, etc.
Thanks!
Waiting for your reply.
