Product Details:

Place of Origin: CHINA
Brand Name: PPGL--HUIYI
Certification: SGS,BV,ISO
Model Number: CGCC,CGCH,CGLCC,CGLCH,DX51D,DX52D

Payment & Shipping Terms:

Minimum Order Quantity: 25TONS
Price: USD/MT
Packaging Details: Standard exporting package. waterproof paper, high density PE film,iron sheet with metal edge protectors, strapped with metal bands
Delivery Time: 20-35days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000 tons per month
Get Best Price Contact Now

Detail Information

Product Name: Antibacterial Galvanised Steel Coil / Sheet , CGCC CGLCC Surface Treatment: Coated , Galvalume
Width: 600mm-1250mm, 750-1250m..... Thickness: 0.12-2.0mm
Grade: SGCC, DX51D, DX51D+AZ, DX51D, CGLCCD Standard: GB, ASTM, JIS, AISI, BS
Zinc Coating: Z20-Z275 Coil ID: 508mm/610mm
Highlight:

Antibacterial Prepainted Galvanized Steel

,

Prepainted Galvanized Steel CGCC

,

Galvalume Prepainted Steel Sheets

Product Description

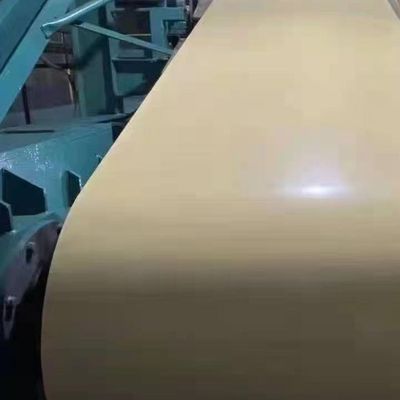

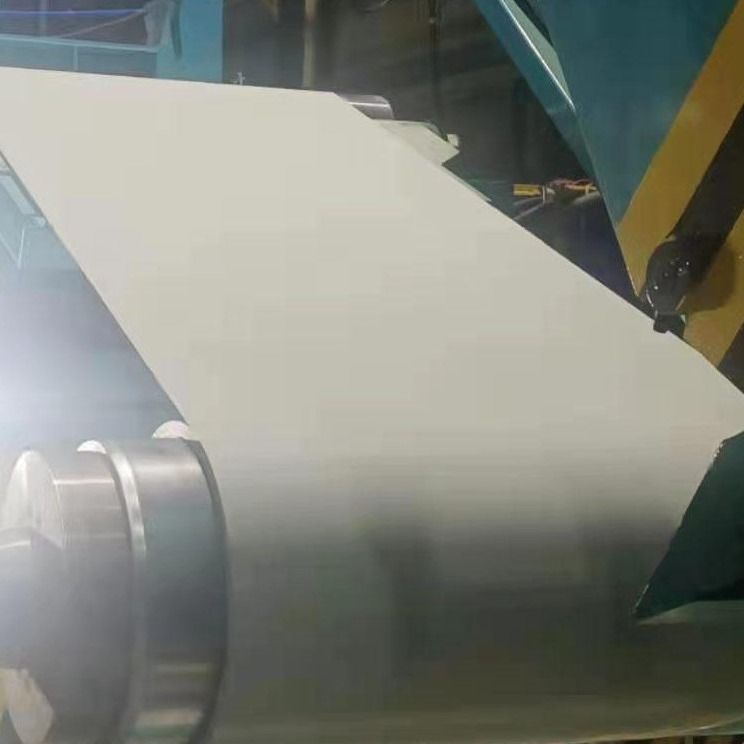

Antibacterial galvanised steel coil / sheet , CGCC CGLCC



The total thickness of the pre-panted galvalume steel coil is composed of the base steel – coating -primer – top paint – protective layer thickness. The top paint thickness is 10-25μm, and the back paint thickness is 5-20μm. The thinner the base steel thickness, the higher the price of the ppgi steel coil, because the processing cost becomes higher.



Thickness : 0.3mm-1.0mm(BMT)

Width : 914mm-1250mm

Paint Brand : AKZO , NIPPON ,PPG , DULLEX ,PE OR PVDF

Color : RAL Scale ,or based on customers‘samples

Coil ID : 508MM / 610MM

Zinc Coating : Z20-Z275

Grade : CGCC,CGCH,G550,G450,G400,G300

Front Paint Coating : 15 -35um

Back Paint Coating : 5-20um



Introduction:



The product uses metal ion dissolution of the antibacterial mechanism, in the course of antibacterial agent slowly release metal ions, dissolution of metal ions that can destroy the bacterial cell membrane or cell protoplasm activity of enzyme activity, also has anti-yellow staphylococcus and Escherichia coli Of the role, with high antibacterial efficiency, antibacterial time is long and so on. Antibacterial color plate on Staphylococcus aureus, Escherichia coli and other Gram-negative bacteria rate of 99% or more, the growth of fungi and fungi also significantly inhibited, is to reduce cross-infection and bacterial infection probability of an effective way , Has broad market prospects and huge application potential.

Such kind of product is mainly used in hospital walls, ceilings, food storage and processing areas, ventilation systems and other facilities, with excellent antibacterial and processing performance.








Here comes some  roofing sheets specification:



Antibacterial Prepainted Galvanized Steel CGCC CGLCC 0      Antibacterial Prepainted Galvanized Steel CGCC CGLCC 1



Antibacterial Prepainted Galvanized Steel CGCC CGLCC 2     Antibacterial Prepainted Galvanized Steel CGCC CGLCC 3



Antibacterial Prepainted Galvanized Steel CGCC CGLCC 4   Antibacterial Prepainted Galvanized Steel CGCC CGLCC 5
