Decoration Prepainted Galvanized Steel 0.12mm Thickness

Decoration Prepainted Galvanized Steel 0.12mm Thickness

Product Details:

Place of Origin: CHINA
Brand Name: HUIYI
Certification: SGS,ISO,BV
Model Number: CGCC,CGCH,CGLCC,CGLCH,G550,DX51D

Payment & Shipping Terms:

Minimum Order Quantity: 25 TONS
Price: negotiated
Packaging Details: Standard exporting package. waterproof paper, high density PE film,iron sheet with metal edge protectors, strapped with metal bands, 4 bands horizontal with 3 bands vertical
Delivery Time: 20-35days
Payment Terms: L/C, T/T, D/P
Supply Ability: 3000 Tons per month
Get Best Price Contact Now

Detail Information

Product Name: Printing Prepainted Gavanised Steel Coil /plate/sheet For Decoration Thickness: 0.12-2.0mm
Width: Under 1500mm Grade: DX51D,DX52D,CGCC,CGLCC,CGCH
Zinc Coating: Z20-Z275 Length: Customized
Shape: Coil, Flat, Corrugated Coil Weight: As Customers'requirements
Highlight:

Decoration Prepainted Galvanized Steel

,

0.12mm Thick Prepainted Galvanized Steel

,

Corrugated Prepainted Galvanized Steel

Product Description

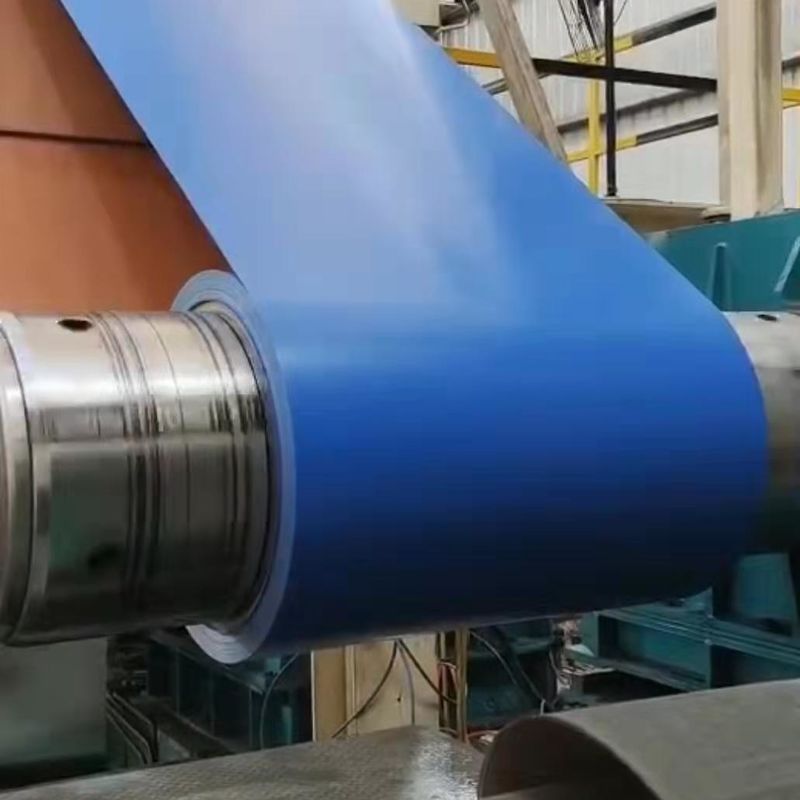

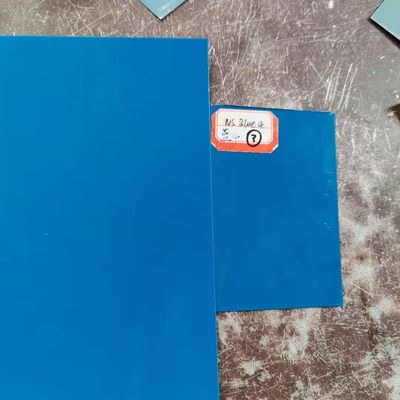

Printing prepainted Gavanised Steel coil /plate/sheet for decoration



PPGL steel is an innovative product by combining the strength of steel with the anti-corrosive capabilities of coatings. It is short for pre-painted galvalume steel coil, which uses aluminum-galvanized steel sheet (55% aluminium, 43% zinc and 1.6% silicon) as base metal. The material is exceptionally resistant to corrosion. It can also withstand to high temperature up to 315 degreesIt is made by taking gavalume sheet and alloy gavalume sheet as the substrate through surface pretreatment, coating one or more layers of liquid coating by roll coating, baking and cooling. The used coatings including polyester, silicon modified polyester, high-durability polyester, polyvinylidene fluoride, epoxy and high corrosion-resisting coating are widely used for building, transport, home appliances, solar energy, furniture, etc. It is mainly used as the side door plate of refrigerators, and shell of DVDs, air conditionings, freezers, and washing machines.




Production line Product thickness mm Product width mm Steel coil weight (t) Steel coil inner diameter mm Production capacity
(10,000t/year)
Printing PPGI 0.12-2.0mm 800-1,250 ≤28 508 or 610 5



Mechanical properties for base material:





No. Tensile test
Yield strength Tensile strength Percentage elongation after fracture A%
Rel (MPa) Rm (MPa) 1.8~<2.0 2.0~<2.5 2.5~<3.2 3.2~<4.0 ≥4.0
SPHC   ≥270 ≥29 ≥30 ≥31 ≥32 ≥32
SPHD   ≥270 ≥32 ≥33 ≥35 ≥37 ≥39
SPHE   ≥270 ≥33 ≥35 ≥37 ≥39 ≥41
SS330 ≥205 330~430 ≥26
SS400 ≥245 400~510 ≥21
SAPH310
SAPH370 ≥370 ≥255 ≥32
SAPH400
SAPH440





Specification :



Color:

 As customers‘ requirements

Paint Brand:  Akzo Nobel ,Nippon,Dullex,Local Brand and etc.
Thickness:  0.12-2.0mm
Zinc coating:  Z20-Z275g/m2
Front Paint Coating:  15-35um
Back Paint Coating:   5-25um
Coil Weight:  Customized
Grade:  CGCC,CGCH,G550,G450,G400,G300
Width:  under 1500mm
Coil ID  508MM / 610 MM
