JIS Galvanized Steel Flat Sheet 6mm Minimise Spangle
Product Details:
Place of Origin: | China |
Brand Name: | HUIYI-GI |
Certification: | SGS,BV,ISO9001 |
Model Number: | SPCC,SGCC,SGCD,DX51/52/53/54D+Z,Q195/215/235 And Etc |
Payment & Shipping Terms:
Minimum Order Quantity: | 25tons each thickness |
---|---|
Price: | USD/MT |
Packaging Details: | Standard exporting package.wrapped with waterproof paper.Then after fully wrapped with high density PE film. Then after fully covered with iron sheet with metal edge protectors, strapped with metal bands, min 4 bands horizontal, min 3 bands vertical. |
Delivery Time: | 15-35days |
Payment Terms: | L/C, D/A, D/P, T/T |
Supply Ability: | 1000 tons per month |
Detail Information |
|||
Product Name: | ASTM, AISI, GB, JIS, DIN , 0.11-6.0mm Thickness Hot-dip Galvanized Steel Coil/Sheet,Minimise Spangle | Application: | Decoration, Flange Plate, Ship Plate, |
---|---|---|---|
Width: | Under 1600mm | Thickness: | 0.11-6.0mm |
Zinc-coating: | Z20-Z600 | Standard: | ASTM, AISI, GB, JIS, DIN |
Shape: | Coil/sheet | Coil ID: | 508mm/610mm |
Surface Treatment: | Oiled/un-oiled ,chromated | Coil Weight: | According To Requirements |
Highlight: | HUIYI 6mm galvanized steel flat sheet,HUIYI Z20 prepainted steel coil,0.11mm galvanized steel flat sheet |
Product Description
ASTM, AISI, GB, JIS, DIN , 0.11-6.0mm Thickness Hot-dip Galvanized Steel Coil/Sheet,Minimise spangle
Hot galvanized sheet and alloying galvanized sheet have excellent performance, ideal combination property including corrosion resistance, formation and coating, and are mainly used for building, automobiles, metallurgy, and electrical equipment. Galvanized sheet is mainly used for making roof, door and window, roller shutter door, and suspended skeleton in building industry, vehicle shell, chassis, door, trunk lid, oil tank and fender in auto industry, steel sash blank and color coated sheet substrate in metallurgy industry, and refrigerator base, shell, refrigerating chamber, kitchen equipment and other parts in electrical equipment industry.Hot-dip galvanized steel sheets (GI) are produced by passing the full hard sheet which has undergone the acid washing process and rolling process through the zinc pot, thereby applying zinc film to the surface. GI has a thicker galvanized layer which has excellent anti-corrosion qualities, and is the type of steel sheet used most commonly.
Specifications
■ Standard: ASTM A653,JIS G3302,GB/T3830-2006
■ Grade: SPCC,SGCC,SGCD,DX51/52/53/54D+Z,Q195/215/235 And Etc
■ Thickness: 0.11-6.0mm
■ Width: 30-1600mm(Usual:914mm,1219mm,1220mm,1250mm)
■ Base Metal: Cold-Rolled Steel
■ Zinc Coating: 20-600g/sqm
■ Coil Internal Diameter: 508mm/610mm
■ Surface Treatment: Chromating,Oiled
■ Tolerance: Thickness: +/-0.05mm,Width:+5/-2mm,Total Quantity:+/-10%,Zinc Coating:+/-10%
■ Surface Finish: Big Spangle,Regular Spangle,Minimized Spangle,Zero Spangle

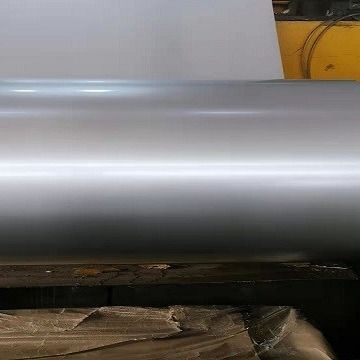

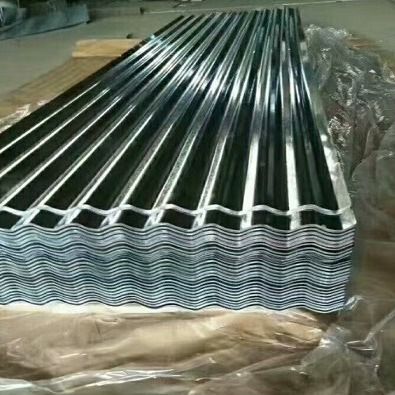

Here comes some GI products as below:
