JIS G3302 Zinc Coated Steel Coil,galvanised steel coil
Product Details:
| Place of Origin: | China |
| Brand Name: | HUIYI-GI |
| Certification: | SGS , BV , ISO9001 |
| Model Number: | SPCC , SGCC , SGCH,SGCD , DX51/52/53/54D+Z , Q195/21 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25tons each thickness |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard exporting package, wrapped with waterproof paper. Then high density PE film. after fully covered with iron sheet with metal edge protectors, strapped with metal bands |
| Delivery Time: | 15-35days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 8000 tons per month |
|
Detail Information |
|||
| Product Name: | JIS G3302 , Z20-Z600 Zinc Coating Standard Zero Spangle Galvanised Steel Coil Cold Rolled | Application: | Decoration , Flange Plate , Ship Plate, Building |
|---|---|---|---|
| Width: | Under 1600mm | Thickness: | 0.11-6.0mm |
| Zinc-coating: | Z20-Z600 | Standard: | ASTM , AISI , GB , JIS , DIN |
| Shape: | Coil/sheet | Coil ID: | 508mm/610mm |
| Coil Weight: | According To Customers' Requirements | Surface: | Zero Spangle，chromated，unoiled |
| Highlight: | HUIYI JIS G3302 zinc coated steel coil,Z20 prepainted galvanized steel sheet,JIS G3302 zinc coated steel coil |
||
Product Description
JIS G3302 , Z20-Z600 Zinc Coating Standard Zero Spangle Galvanised Steel Coil Cold Rolled
Galvanised steel coil introduction :
Galvanized steel,the cold rolled steel roll continuously immersed in the molten zinc plating bath ,the surface fusion it a layer of zinc anticorrosive materials in 470 dgree Centigrade heat.it is a steel basedcomposite material ,effctively prevent the corrosion of steel,to extend the service life,with excellent corrosion resistance,good surface quality is conducive to deep processing,economical and practical,widely used in construction,household appliances,vehicles,container manufacturing industry ,electromechanical industry etc.Cold rolled sheet is rooled with hot rolled coil as raw material,and the temperature is below the room temperature.Hot-dip galvanized steel sheets (GI) are produced by passing the full hard sheet which has undergone the acid washing process and rolling process through the zinc pot, thereby applying zinc film to the surface. GI has a thicker galvanized layer which has excellent anti-corrosion qualities, and is the type of steel sheet used most commonly.
Specifications of galvanised steel coil :
| Products | Galvanised Steel Coil/Sheet |
| Standard | ASTM A653 , JIS G3302 , GB/T3830-2006 |
| Grade | SPCC , SGCC , SGCD , DX51/52/53/54D+Z , Q195/215/235 And Etc |
| Thickness | 0.11-6.0mm |
| Width | 30-1600mm(Usual:914mm, 1219mm, 1229mm, 1250mm) |
| Base Metal | Cold Rolled Steel |
| Zinc Coating | 20-600g/sqm |
| Coil Internal Diameter | 508mm/610mm |
| Surface Treatment | Chromating , Oiled |
| Tolerance | Thickness:+/-0.05mm , Width:+5/-2mm , Total Quantity:+/-10% , Zinc Coating:+/-10% |

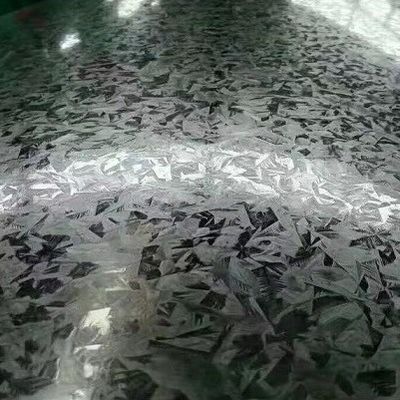

| Surface Finish | Big Spangle , Regualr Spangle , Minimized Spangle , Zero Spangle |
Galvanised steel coil Application:
1. Buildings And Constructions
Floor Decks, Ceilings, Duct Work, Roofing, Siding, Sashes, Beams, Fences, Verandas, Shutters, Awnings,
Partitions, Indoor Decorations, Pipes, Ventilators, Sheds, Culverts.
2. Transportation
Body Pane, Air Cleaners, Oil Filters, Fuel Tanks, Containers, Highway Barriers.
3. Appliances
Light Fittings, Washing Machines, Dryers, Coolers, Vending Machines, Water Heaters, Stoves, Refrigerators, Freezers, Tool Boxes.
4. Agriculture
Barns, Dryer Panels, Animal Houses, Hoppers. Bar Supporters, Irrigation Systems, Green Houses.
5. Others
Furniture And Office Equipment, Entertainment Machines, Car Ports, Garden And Storage Sheds
GI PIPE:
FAQ:
Q:Are you a trading company or a manufacturer?
A:We are one of the biggest and professional manufacturer in China. Our products are hot-sale due to our superior quality, competitive price and the best after-sales service.
Q:How about the MOQ?
A:Generally, the MOQ can be placed depending on different products.
Q:How about the sample if I need?
A:The sample is free of charge
Q:Do you have English Mill Test Certificates?
A:Yes, we can provide MTC attached to your documents.
Q:What is shipment terms?
A: 1. Container ship 2. Bulk ship 3. Train
Q:How about the delivery time?
A:About 10-25 days after receiving the deposit. Certainly, the detail will be confirmed by the quantity and the different products.
