Al Mg Mn Prepainted Galvanized Steel Coil CGLCC CGLCH
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PPGI---HUIYI |
| Certification: | SGS,BV,ISO-9001 |
| Model Number: | SGCC,CGCC,SGLCC,CGLCC,GCCH,SGCH,G550,G450,G400,G300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25 TONS |
|---|---|
| Price: | Deponds on customers’requirements |
| Packaging Details: | Standard exporting package. |
| Delivery Time: | 25-35days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 tons per month |
|
Detail Information |
|||
| Product Name: | Al-Mg-Mn Color Plate / Al-Mg-Mn PPGI / Al-Mg-Mn Prepainted Galvanised Steel Coil,CGLCC,CGLCH | Grade: | SGCC,CGCC,DX51D,CGLCC |
|---|---|---|---|
| Zinc Coating: | 30-275g/m2,AZ150 | Surface Treatment: | Coated,Galvanized,Printing / Matte |
| Coil ID: | 508MM / 610MM | Front Paint Coating: | 15-35um |
| Back Paint Coating: | 5-25um | Color: | Ral Colors ，or Based On Customers‘samples |
| Highlight: | CGLCC Prepainted Galvanized steel,HUIYI 508MM coated steel sheet,HUIYI CGLCH Prepainted Galvanized Steel |
||
Product Description
Al-Mg-Mn color plate / Al-Mg-Mn PPGL / Al-Mg-Mn Prepainted Galvalume Steel Coil,CGLCC,CGLCH
PRODUCTION PARAMENTERS

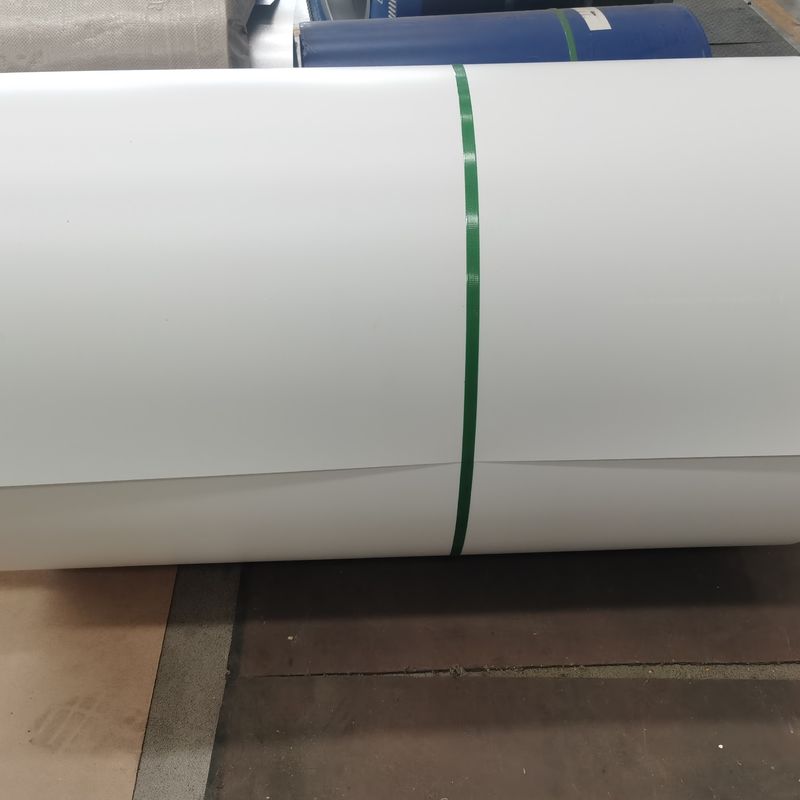

Description : Pre-painted galvanized /galvalume steel coil/sheet
Coil Weight : Standard is 5-8mt, always based on customers’ requirements
Thickness : 0.12mm~3.0mm
Width : 914mm,1000mm,1200mm,1219mm,1250mm,1500mm
Number and Mechanical Property
| No. | Tensile test | ||||||
| Yield strength Rel (MPa) |
Tensile strength Rm (MPa) |
Percentage elongation after fracture A% | |||||
| 1.8～＜2.0 | 2.0～＜2.5 | 2.5～＜3.2 | 3.2～＜4.0 | ≥4.0 | |||
| SPHC | ≥270 | ≥29 | ≥30 | ≥31 | ≥32 | ≥32 | |
| SPHD | ≥270 | ≥32 | ≥33 | ≥35 | ≥37 | ≥39 | |
| SPHE | ≥270 | ≥33 | ≥35 | ≥37 | ≥39 | ≥41 | |
| SS330 | ≥205 | 330～430 | ≥26 | ||||
| SS400 | ≥245 | 400～510 | ≥21 | ||||
| SAPH310 | ≥ | ||||||
| SAPH370 | ≥370 | ≥255 | ≥32 | ||||
| SAPH400 | ≥ | ||||||
| SAPH440 | ≥ | ||||||
|
Notes: 1. The tensile test specified value in the table is suitable for longitudinal test piece. 3. Steel strip is delivered in the state of hot rolling.
|
|||||||
PRODUCT APPLICATION
PACKING AND SHIPPING
Standard exporting package.wrapped with waterproof paper.Then after fully wrapped with high density PE film.Then after fully covered with iron sheet with metal edge protectors, strapped with metal bands, min 4 bands horizontal, min 3 bands vertical
