JIS G3302 Cold Rolled Steel Sheet In Coil G550 SGCH
Product Details:
Place of Origin: | China |
Brand Name: | HUIYI-GI |
Certification: | SGS , BV , ISO9001 |
Model Number: | SPCC , SGCC , SGCH,SGCD , DX51/52/53/54D+Z , Q195/21 |
Payment & Shipping Terms:
Minimum Order Quantity: | 25tons each thickness |
---|---|
Price: | Negotiation |
Packaging Details: | Standard exporting package, wrapped with waterproof paper. Then high density PE film. after fully covered with iron sheet with metal edge protectors, strapped with metal bands |
Delivery Time: | 15-35days |
Payment Terms: | L/C, D/P, T/T |
Supply Ability: | 8000 tons per month |
Detail Information |
|||
Surface: | Zero Spangle,chromated,unoiled | Application: | Decoration , Flange Plate , Ship Plate, Building |
---|---|---|---|
Width: | Under 1600mm | Thickness: | 0.11-6.0mm |
Zinc-coating: | Z20-Z600 | Standard: | ASTM , AISI , GB , JIS , DIN |
Shape: | Coil/sheet | Coil ID: | 508mm/610mm |
Coil Weight: | According To Customers' Requirements | Product Name: | JIS G3302 Standard Zero Spangle Galvanised Steel Coil Cold Rolled/Hot Dipped,G550,G450,G400,SGCC,SGCH |
High Light: | JIS G3302 HUIYI cold rolled steel sheet in coil,HUIYI G550 galvanised steel plate,SGCH cold rolled steel sheet in coil |
Product Description

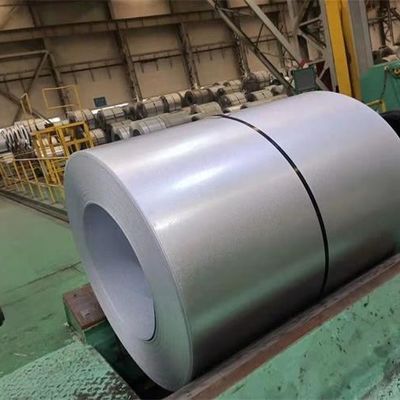

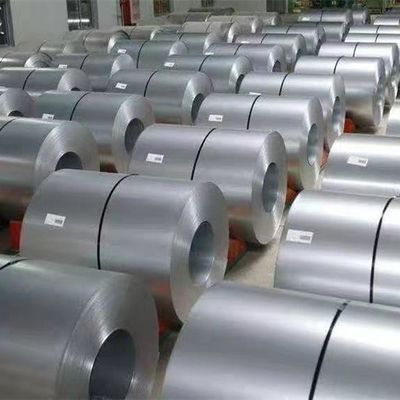

JIS G3302 Standard Zero Spangle Galvanised Steel Coil Cold Rolled/Hot Dipped,G550,G450,G400,SGCC,SGCH
Hot-dip aluzinc steel sheet is substrated on cold rolled steel(CRC)in various strength and specification Coating composition is 55%aIuminum in weight ratio.43 4%zinc.and 1 5%silicon with excellent corrosion and heat resistance performance. GI has a thicker galvanized layer which has excellent anti-corrosion qualities, and is the type of steel sheet used most commonly.
Products : Galvanised Steel Coil/Sheet
Standard : ASTM A653 , JIS G3302 , GB/T3830-2006
Grade : SPCC , SGCC , SGCD , DX51/52/53/54D+Z , Q195/215/235 And Etc
Thickness : 0.11-3.0mm
Width : 30-1600mm(Usual:914mm, 1219mm, 1229mm, 1250mm)
Base Metal : Cold Rolled Steel
Zinc Coating : 20-300g/sqm
Coil Internal Diameter : 508mm/610mm
Surface Treatment : Chromating , Oiled
Tolerance : Thickness:+/-0.05mm , Width:+5/-2mm , Total Quantity:+/-10% , Zinc Coating:+/-10%
Surface Finish : Big Spangle , Regualr Spangle , Minimized Spangle , Zero Spangle
Product Application
1. Buildings And Constructions
Floor Decks, Ceilings, Duct Work, Roofing, Siding, Sashes, Beams, Fences, Verandas, Shutters, Awnings,
Partitions, Indoor Decorations, Pipes, Ventilators, Sheds, Culverts.
2. Transportation
Body Pane, Air Cleaners, Oil Filters, Fuel Tanks, Containers, Highway Barriers.
3. Appliances
Light Fittings, Washing Machines, Dryers, Coolers, Vending Machines, Water Heaters, Stoves, Refrigerators, Freezers, Tool Boxes.
4. Agriculture
Barns, Dryer Panels, Animal Houses, Hoppers. Bar Supporters, Irrigation Systems, Green Houses.
5. Others
Furniture And Office Equipment, Entertainment Machines, Car Ports, Garden And Storage Sheds
