610mm Hot Dipped Galvanized Steel Sheet In Coils DX51D
Product Details:
| Place of Origin: | China |
| Brand Name: | HUIYI-GI |
| Certification: | SGS,BV,ISO9001 |
| Model Number: | SPCC,SGCC,SGCD,DX51/52/53/54D+Z,Q195/215/235 And Etc |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25tons each thickness |
|---|---|
| Price: | USD/MT |
| Packaging Details: | Standard exporting package.wrapped with waterproof paper.Then after fully wrapped with high density PE film. Then after fully covered with iron sheet with metal edge protectors, strapped with metal bands, min 4 bands horizontal, min 3 bands vertical. |
| Delivery Time: | 15-35days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000 tons per month |
|
Detail Information |
|||
| Proudct Name: | Hot-dip Galvanized Steel Coil/Sheet，Minimise Spangle，DX51D,SGCC | Surface: | Big Spangle,Regular Spangle,Minimized Spangle,Zero Spangle |
|---|---|---|---|
| Width: | Under 1600mm | Thickness: | 0.11-6.0mm |
| Zinc-coating: | Z20-Z600 | Standard: | ASTM, AISI, GB, JIS, DIN |
| Shape: | Coil/sheet | Coil ID: | 508mm/610mm |
| Surface Treatment: | Oiled/un-oiled ，chromated | Coil Weight: | According To Requirements |
| High Light: | DX51D hot dipped galvanized steel sheet in coils,HUIYI 610mm hot dip galvanized coils,6mm hot dipped galvanized steel sheet in coils |
||
Product Description
Hot-dip Galvanized Steel Coil/Sheet,Minimise spangle,DX51D,SGCC
Hot-dip aluzinc steel sheet is substrated on cold rolled steel(CRC)in various strength and specification Coating composition is 55％aIuminum in weight ratio．43 4％zinc．and 1 5％silicon with excellent corrosion and heat resistance performance.Hot-dip galvanized steel sheets (GI) are produced by passing the full hard sheet which has undergone the acid washing process and rolling process through the zinc pot, thereby applying zinc film to the surface. GI has a thicker galvanized layer which has excellent anti-corrosion qualities, and is the type of steel sheet used most commonly.
■ Standard: ASTM A653,JIS G3302,GB/T3830-2006
■ Grade: SPCC,SGCC,SGCD,DX51/52/53/54D+Z,Q195/215/235 And Etc
■ Thickness: 0.11-6.0mm
■ Width: 30-1600mm(Usual:914mm,1219mm,1220mm,1250mm)
■ Base Metal: Cold-Rolled Steel
■ Zinc Coating: 20-600g/sqm
■ Coil Internal Diameter: 508mm/610mm
■ Surface Treatment: Chromating,Oiled
■ Tolerance: Thickness:+/-0.05mm,Width:+5/-2mm,Total Quantity:+/-10%,Zinc Coating:+/-10%
■ Surface Finish: Big Spangle,Regular Spangle,Minimized Spangle,Zero Spangle

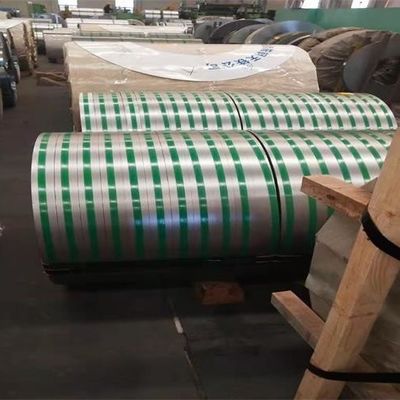

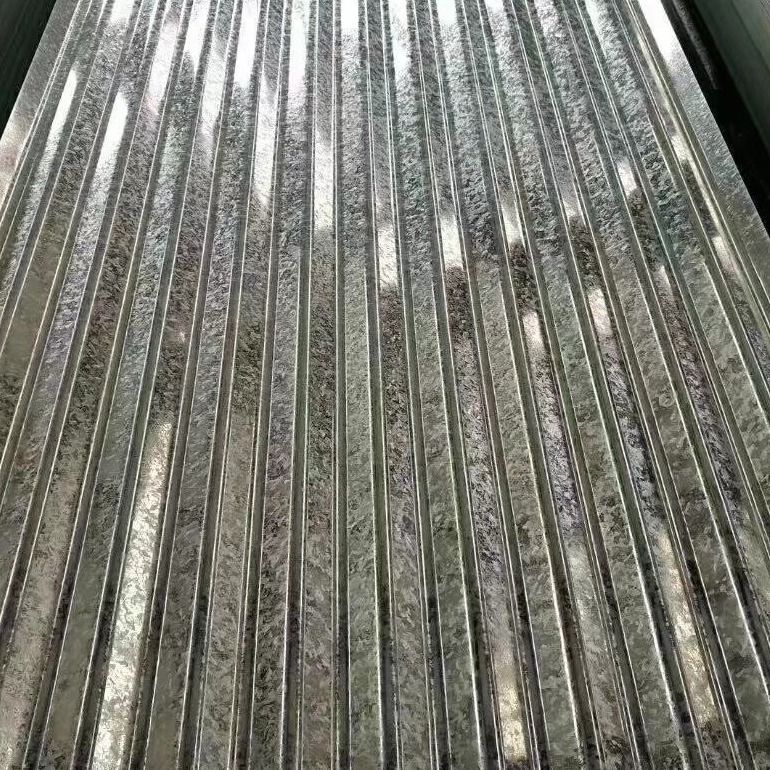

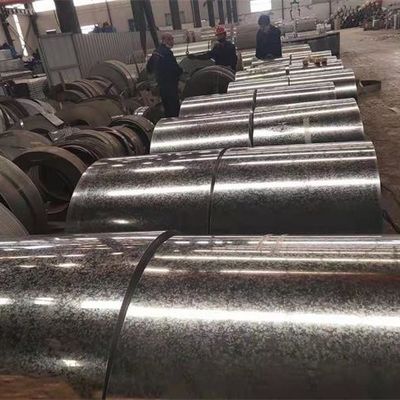

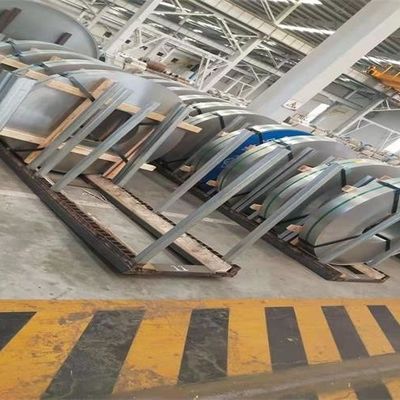

Here comes some GI products as below:
