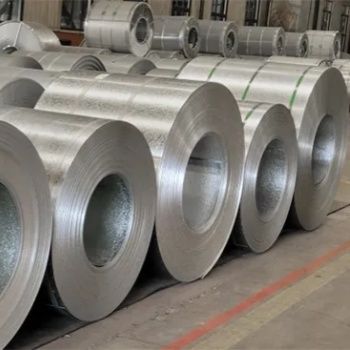

DX51D+Z Chromated Treatment Anti-White Rust Galvanized Steel Coil For Storage
Product Details:
| Place of Origin: | China |
| Brand Name: | HuiYi-GI |
| Certification: | ASTM, EN |
| Model Number: | DX51D+Z |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25MT |
|---|---|
| Price: | Negotiation |
| Packaging Details: | VCI kraft paper + 0.3mm PE film + Steel-strapped pallets with edge guards |
| Delivery Time: | 15-30 Days |
| Payment Terms: | T/T,L/C,D/P |
| Supply Ability: | 5000MT/Month |
|
Detail Information |
|||
| Product Name: | Galvanized Steel Coil | Material: | High-Strength Steel Coil |
|---|---|---|---|
| Size: | (0.12-2.0)mm × (600-1250)mm | Tensile Strength: | 270-500 MPa |
| Yield Strength: | 140-280 MPa | Salt Spray Resistance: | 1,000hrs (ASTM B117) |
| Passivation Type: | Trivalent Chromium (RoHS/REACH Compliant) | Anti-White Rust Guarantee: | 6-12 Months In Humid Storage |
| Highlight: | DX51D+Z Galvanized Steel Coil,Z60-Z275 Coating Galvanized Steel Coil,ASTM A653 Galvanized Steel Coil |
||
Product Description
DX51D+Z Chromated Treatment Anti-White Rust Galvanized Steel Coil For Storage
Stop white rust before it starts. Our galvanized steel coil receives an advanced chromate passivation treatment immediately after galvanization. This critical step forms an invisible shield that actively resists moisture, providing 20-24 times better protection against white rust formation during storage and transit compared to standard galvanized steel. With a robust zinc coating (Z60-Z275) and certifications (ASTM A653, EN 10346), it guarantees your material arrives with a pristine, ready-to-use surface, even in humid environments. It's the reliable choice for warehousing and logistics where corrosion protection is non-negotiable.
Technical Parameters
| Parameter | Specification |
|---|---|
| Base Material | DX51D+Z (ASTM A653, EN 10346) |
| Thickness | 0.12mm - 2.0mm(±0.02mm) |
| Width | 600mm - 1,250mm |
| Coating Weight | Z60-Z275 (60-275g/m²) |
| Surface Treatment | Chromated Passivation (Anti-White Rust) |
| Tensile Strength | 270-500 MPa |
| Yield Strength | 140-280 MPa |
| Salt Spray Resistance | 1,000hrs (ASTM B117) |
| Coil ID | 508mm/610mm |
| Coil Weight | 3-8 Tons |
Applications
- Storage Racks & Shelving: Corrosion-resistant components for warehouse storage systems in high-humidity environments.
- Packaging Materials: Protective layers for industrial goods and equipment during extended storage or maritime transportation.
- Logistics Containers: Components for shipping containers and transport units exposed to moisture.
- Export Packaging: Ideal for goods requiring long-duration ocean transport or humid climate storage.
Customization Options
- Zinc Coating: Adjustable weights (e.g., Z120 for moderate humidity, Z275 for extreme conditions).
- Dimensions: Custom thickness, width, and length cuts to fit specific storage systems.
- Passivation Type: Trivalent chromium passivation (environmentally friendly) or custom formulations.
- Packaging: VCI paper + PE film + desiccant bags for enhanced moisture protection.
- MOQ: 5 tons (custom orders), 25 tons (standard).
Packing and Shipping
Triple-Shield Packaging: VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).
Global Logistics: FOB/CIF from Chinese ports; 15-20 day delivery for Asia, 30-45 days globally.
Quality Assurance: Pre-shipment inspection and moisture indicators for transit protection.
FAQ
Is trivalent chromium passivation environmentally safe?
Yes, it replaces hazardous hexavalent chromium and complies with RoHS/REACH standards.
What's the payment term for Galvanized Steel Coil?
30-50% TT in advance(based on your qty), 70% balance against copy B/L in 7 workdays.
When will you send BL copy?
In 3-5 workdays after shipment date.
When will you send original Documents?
In 3-5 workdays when we get the balance.
What is the lead time for samples?
Samples are available in 7-10 days after detailed requirements confirmation.
What is your working time?
Our online service time is Beijing time: 8:00-22:00. After 22:00, we will reply to your inquiry in the coming working day.
