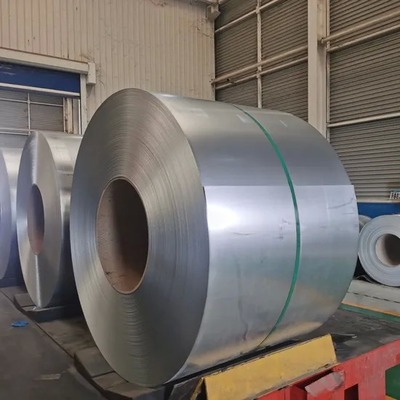

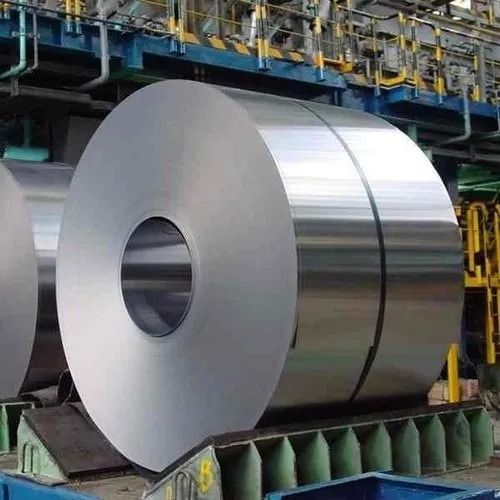

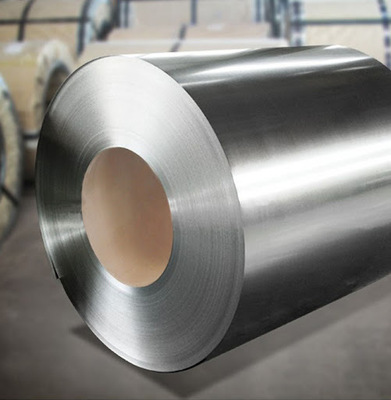

DX53D Formable Galvanized Steel Coil For Automotive
Product Details:
| Place of Origin: | China |
| Brand Name: | HuiYi-GI |
| Certification: | ASTM, EN, JIS |
| Model Number: | DX53D+Z |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25MT |
|---|---|
| Price: | Negotiation |
| Packaging Details: | VCI kraft paper + 0.3mm PE film + Steel-strapped pallets with edge guards |
| Delivery Time: | 15-30 Days |
| Payment Terms: | T/T,L/C,D/P |
| Supply Ability: | 5000MT/Month |
|
Detail Information |
|||
| Product Name: | Galvanized Steel Coil | Material: | High-Strength Steel Coil |
|---|---|---|---|
| Size: | (0.12-2.0)mm × (600-1250)mm | Tensile Strength: | 270-500 MPa |
| Yield Strength: | 140-280 MPa | Salt Spray Resistance: | 1,000hrs (ASTM B117) |
| Spangle Type: | Zero Spangle (for Painting) | Special Property: | Excellent Deep Drawing Performance |
Product Description
Our DX53D Formable Galvanized Steel Coil is engineered for high-performance automotive applications, combining superior deep-drawing capabilities with exceptional corrosion resistance. The hot-dip galvanized coating (Zinc Coating: 60-275g/m²) provides robust sacrificial protection, ensuring longevity in harsh environments. With a tensile strength of 270-380 MPa and elongation exceeding 30%, this coil is ideal for complex forming processes like deep drawing and stamping without cracking or coating peeling. Certified to ASTM A653, EN 10346, and JIS G3302 standards, it meets stringent automotive industry requirements for durability, weldability, and paint adhesion. The surface finish (zero spangle or minimized spangle) ensures a smooth base for painting and coating.
| Parameter | Specification |
|---|---|
| Base Material |
DX53D+Z (ASTM A653, EN 10346, JIS G3302)
|
|
Thickness
|
0.12mm - 2.0mm(±0.02mm)
|
|
Width
|
600mm - 1,250mm
|
|
Coating Weight
|
Z60-Z275 (60-275g/m²)
|
|
Elongation
|
≥30%
|
|
Surface Finish
|
Zero Spangle/Minimized Spangle
|
|
Tensile Strength
|
270-500 MPa
|
|
Yield Strength
|
140-280 MPa
|
|
Salt Spray Resistance
|
1,000hrs (ASTM B117)
|
|
Coil Weight
|
3-8 Tons
|
- Automotive Body Panels: Door inner panels, fenders, and trunk lids requiring deep-drawing formability and corrosion resistance.
- Chassis Components: Underbody parts, brackets, and reinforcement panels exposed to road salts and moisture.
- Structural Parts: Seat frames, cross members, and wheel arches leveraging high strength (270-380 MPa) and weldability.
- HVAC Systems: Ducts and housings benefiting from zinc coating protection and formability.
Zinc Coating: Adjustable coating weights (e.g., Z120 for interior parts, Z275 for corrosive environments).
Dimensions: Custom thickness, width, and length cuts.
Surface Treatment: Chromated, oiled, or passivation finishes for enhanced corrosion resistance.
Spangle Type: Zero spangle (ideal for painting) or minimized spangle.
MOQ: 5 tons (custom orders), 25 tons (standard).
Triple-Shield Packaging: VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).
Global Logistics: FOB/CIF from Chinese ports; 15-20 day delivery for Asia, 30-45 days globally.
Quality Assurance: Pre-shipment inspection and moisture indicators for transit protection.
Q: Does the coil support welding and painting?
A: Yes, the zero-spangle surface ensures excellent weldability and paint adhesion.
Q:What s the payment term for Galvanized Steel Coil?
A:30-50% TT in advance(based on your qty ), 70% balance against copy B/L in 7 workdays.
Q:When will you send BL copy?
A:In 3-5 workdays after shipment date.
Q:When will you send original Documents?
A:In 3-5 workdays when we get the balance.
Q: What is the lead time for samples?
A: Samples are available in 7-10 days after detailed requirements confirmation.
Q:What is your working time?
A: Our online service time is Beijing time: 8:00-22:00. After 22:00, we will reply to your inquiry in the coming working day.
