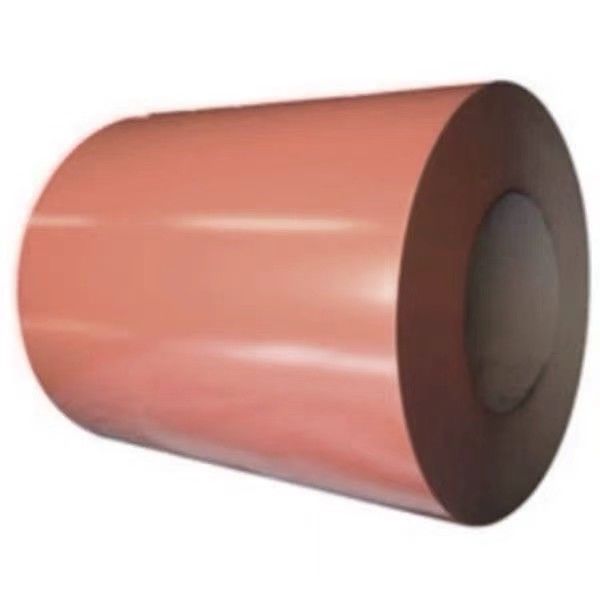

PPGL Steel Coil Aluminum Zinc Alloy Coated Steel With Superior Corrosion Resistance

PPGL Steel Coil Aluminum Zinc Alloy Coated Steel With Superior Corrosion Resistance

Product Details:

Place of Origin: China
Brand Name: HUIYI
Certification: SGS, BV, ISO9001
Model Number: SGLCC/CGLCC

Payment & Shipping Terms:

Minimum Order Quantity: 25 tons each thickness
Price: negotiated
Packaging Details: Standard exporting package.wrapped with waterproof paper.Then high density PE film.Then after fully covered with iron sheet
Delivery Time: 20-35days
Payment Terms: L/C, T/T, D/P
Supply Ability: 50000 tons per year
Get Best Price Contact Now

Detail Information

Base Material: Galvanized Steel, Galvalume Steel, Aluzinc Steel Coating Type: PE/SMP/HDP/PVDF
Surface Treatment: Coated/Galvanized Technique: Cold Rolled,Hot Rolled
Standard: ASTM,GB,JIS,AISI Grade: SGCC,DX51D,JIS G3302
Application: Buildings And Constructions Paint Thickness: Top Side: 10-25μm ; Back Side: 5-8μm
Highlight:

Aluminum Zinc Alloy PPGL Steel Coil

,

Superior Corrosion Resistance PPGL Steel Coil

Product Description

Introduction of PPGL Steel Coil:



What is Prepainted Galvalume (PPGL)?

PPGL refers to Galvalume steel sheets that are coated with paint or a protective polymer layer before being formed into final products (like roofing, panels, or appliances).



Key Components:
1. Galvalume (Base Material):
- A type of steel coated with a zinc-aluminum alloy (typically 55% aluminum, 43.4% zinc, and 1.6% silicon).
- Known for superior corrosion resistance compared to regular galvanized steel.



2. Prepainted Coating:
- A factory-applied layer of paint or polymer (e.g., polyester, PVDF) on the Galvalume surface.
- Applied using a continuous coil-coating process for uniformity and durability.



3.Why Use PPGL?
- Corrosion Resistance: Galvalume’s zinc-aluminum coating protects against rust, while the paint layer adds an extra barrier.
- Aesthetic Appeal: Available in various colors and finishes for architectural or decorative uses.
- Durability: Resists UV rays, scratches, and weathering, making it ideal for outdoor applications.





PPGL Steel Coil Aluminum Zinc Alloy Coated Steel With Superior Corrosion Resistance 0

Technical Parameters:

Property Value
Surface Treatment Coated
Top Paint PE/SMP/HDP/PVDF
Material Galvalume Steel Coil
Tolerance(Thickness) +/-0.03mm
Tolerance(Width) +/-2mm
Thickness 0.12-2.0mm
Packing Standard Export Packing
Back Paint Epoxy/Modified Polyester
Coil ID 508/610mm
Width 600-1250mm
Coil Weight 3-8 Tons


PPGL Advantages:

1. Corrosion Resistance

Pre-painted Galvalume (PPGL) steel coils offer exceptional corrosion resistance due to their aluminum-zinc alloy coating, which forms a durable barrier against environmental elements. This coating effectively protects the steel substrate from rust and degradation, even in harsh and corrosive environments such as coastal regions with high salt content or industrial zones with acidic pollutants. The combination of aluminum’s barrier protection and zinc’s sacrificial action ensures long-term performance and significantly reduces the need for additional protective treatments.




2. Durability

PPGL steel sheets are engineered for long service life. When paired with high-quality polyester (PE), silicon modified polyester (SMP), or polyvinylidene fluoride (PVDF) coatings, these sheets can endure over 25 years of exposure to normal weather conditions with minimal maintenance. The painted surface not only enhances visual appeal but also offers resistance to UV radiation, moisture, temperature changes, and mechanical wear, ensuring the material remains structurally and aesthetically stable over time.




3. Strength and Support

Despite being lightweight, PPGL steel has high tensile strength, making it an ideal material for structural applications. Its excellent load-bearing capacity allows it to support heavy roofing materials or withstand strong wind uplift pressures, which is particularly important for large-scale industrial and commercial buildings. The material’s combination of strength, flexibility, and low weight facilitates easier handling during installation while maintaining safety and integrity under demanding conditions.



PPGL Steel Coil Aluminum Zinc Alloy Coated Steel With Superior Corrosion Resistance 1


PPGL Applications:



1. Roofing Systems


PPGL steel is the preferred choice for roofing across industrial plants, commercial complexes, and residential projects. Its superior corrosion resistance and structural durability ensure decades of reliable performance, even in coastal or high-humidity environments. The material's lightweight nature simplifies installation while reducing structural load requirements.





2. Architectural Cladding & Facades


Engineered for lasting beauty, PPGL steel transforms building exteriors with vibrant, fade-resistant finishes. Advanced coating technologies maintain color integrity against UV exposure, making it ideal for modern architectural designs. Customizable textures and gloss levels enable creative freedom for signature buildings.





3. Rainwater Management Systems


Manufacturers rely on PPGL steel for precision-engineered rainwater solutions including:

  • - High-capacity gutter systems
  • - Durable downpipes
  • - Weatherproof flashings

The material's formability allows for seamless designs that prevent leaks and minimize maintenance.







PPGL Steel Coil Aluminum Zinc Alloy Coated Steel With Superior Corrosion Resistance 2

FAQ:

Q1.: How durable is PPGL roofing/cladding sheet?
A1: PPGL sheets last over 20 years with proper installation and mild cleaning. The galvalume coating and premium paint provides long-term corrosion resistance.



Q2.: What type of climates can PPGL sheets be used in?
A2: PPGL is suitable for all 4 seasons and can withstand extreme temperatures, humidity, rainfall etc. making it ideal for most countries/regions.



Q3.: How much weight can PPGL cladding panels hold?
A3.: PPGL sheets have high strength-to-weight ratios. 0.5mm panels can safely hold 35-50kg/sqm static loads under normal conditions.



Q4.: What maintenance is required for PPGL cladding/roofs over time?
A4.: Periodic washing using a soft brush and mild detergent is sufficient to retain the looks of PPGL for decades.
