Anti-Fingerprint Prepainted Galvalume Steel Coil Alu Zinc Coated AZ50-150

Anti-Fingerprint Prepainted Galvalume Steel Coil Alu Zinc Coated AZ50-150

Product Details:

Place of Origin: China
Brand Name: HUIYI
Certification: SGS, BV, ISO9001
Model Number: SGLCC/CGLCC

Payment & Shipping Terms:

Minimum Order Quantity: 25 tons each thickness
Price: negotiated
Packaging Details: Standard exporting package.wrapped with waterproof paper.Then high density PE film.Then after fully covered with iron sheet
Delivery Time: 20-35days
Payment Terms: L/C, T/T, D/P
Supply Ability: 50000 tons per year
Get Best Price Contact Now

Detail Information

Product: PPGL Steel Coil Standard: GB
Thickness: 0.12-2.0mm Width: 600-1500mm
Coating: AZ50-150g/m² Elongation: 8-28%
Grade: DX51D, SGCC, SGCH, CGLCC Paint Type: PE, SMP, HDP, PVDF
Tolerance: ±1 Application: Construction, Household Appliances, Transportation, Etc.
Highlight:

Alu Zinc Coated Galvalume Steel Coil

,

Anti Fingerprint Prepainted Galvalume Steel Coil

,

AZ50-150 PPGL Steel Coil

Product Description

Anti-Fingerprint Prepainted Galvalume Steel Coil Alu Zinc Coated AZ50-150

Color-coated Steel Coil Introduction

Color-coated coil is a product of hot galvanized plate, hot aluminum plated zinc plate, electrogalvanized plate, etc., after surface pretreatment (chemical degreasing and chemical conversion treatment), coated with one or several layers of organic coating on the surface, and then baked and cured. Because coated with a variety of different colors of organic paint color steel coil named, referred to as color coated coil.



Color-coated roll has light weight, beautiful appearance and good corrosion resistance, but also can be directly processed, the color is generally divided into gray, blue, brick red, mainly used in advertising, construction, home appliance industry, electrical appliance industry, furniture industry and transportation industry.

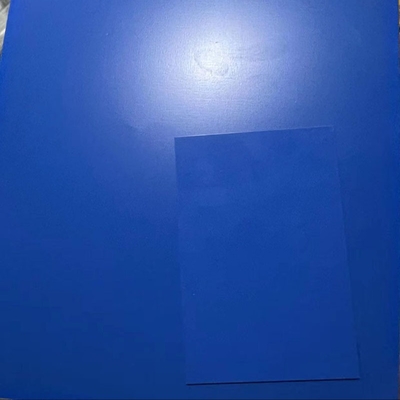

Anti-Fingerprint Prepainted Galvalume Steel Coil Alu Zinc Coated AZ50-150 0



Specification Of Color-coated Steel Coil:

Width
600-1500mm, usually 1250mm,1000mm,1240mm,1500mm,914mm,750mm and so on
Grade
DX51D, SGCC, SGCH, CGLCC
Application
Inner decoration/School board/Making boxing
Paint Top (microns)
15-35 microns
Paint Back (microns)
5-10 microns
Coil ID
508/610 mm
Coating
AZ50-AZ150
Surface
Matt, high gloss, double coated, wood pattern, marble pattern, winkle

Color-coated Steel Coil Substrate Classification:

There are three main types of color-coated coil substrate: hot galvanized substrate, hot aluminized zinc substrate and electroplated zinc substrate. Hot-dip galvanized substrate is prepared by dipping hot-dip galvanized sheet into hot-dip galvanized solution and forming zinc coating on its surface. Hot plated aluminum zinc substrate is made by hot dipping a mixture of zinc and aluminum (such as 55% aluminum and 45% zinc) in hot plated aluminum zinc solution on the hot galvanized substrate, and then baking and curing the hot galvanized substrate after hot dipping.

Color-coated Steel Coil Coating Structure:

Color coated coil coating structure is mainly divided into two types: 2/1 and 2/1M. 2/1 coating structure refers to the upper and lower surfaces are coated twice and baked twice. 2/1M coating structure refers to the upper and lower surfaces are coated twice and baked once. The choice of coating structure depends on the environment and application.

Color-coated Steel Coil Advantages

1. Corrosion Resistance

The aluminum-zinc alloy coating provides excellent protection against corrosion even in highly corrosive environments near coastlines or industrial areas.



2. Durability

When combined with a durable paint finish, PPGL steel sheets can last over 25 years with only nominal maintenance under normal weather conditions.



3. Strength and Support

PPGL steel is strong yet lightweight. It can support heavy loads and withstand high wind loads making it suitable for roofing and cladding applications in commercial buildings.

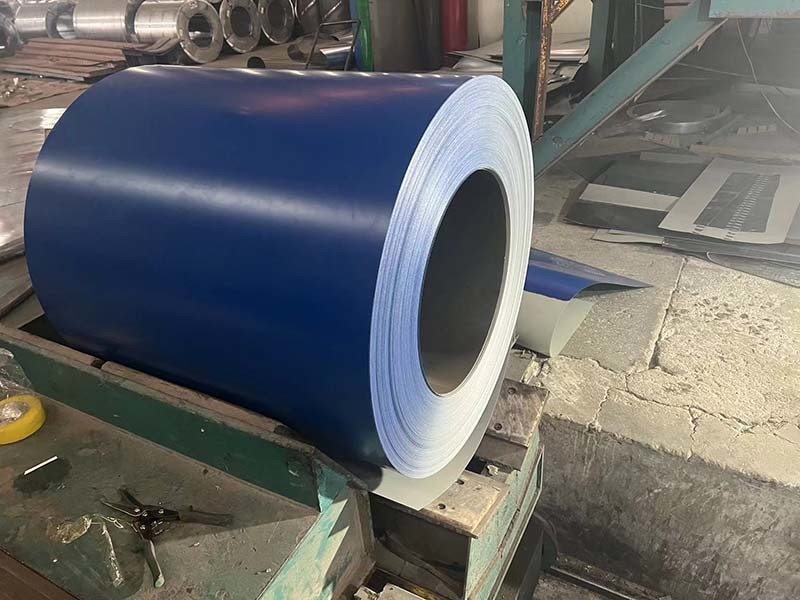

Anti-Fingerprint Prepainted Galvalume Steel Coil Alu Zinc Coated AZ50-150 1

Color-coated Steel Coil Applications:

1. Roofing
PPGL steel is widely used for roofing purposes in industrial, commercial and residential construction due to its corrosion resistant properties and durability.



2. Cladding
The material is also commonly applied as exterior wall cladding/facades thanks to the long lasting color coated finishes that retain aesthetics over decades.



3. Rainwater Goods
PPGL profiles are commonly used to manufacture rain gutters, downpipes, flashings and other rainwater accessories around buildings.



4. Industrial Siding
PPGL panels are a practical choice for warehouses, factories, agricultural sheds due to their non-combustible properties and ability to withstand impacts.



5. Agricultural Buildings
Farm buildings like sheds, barns and stables can be economically constructed using PPGL sheets that withstand all weather conditions.

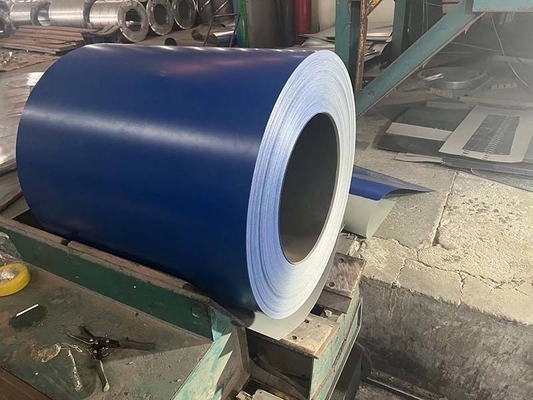

Anti-Fingerprint Prepainted Galvalume Steel Coil Alu Zinc Coated AZ50-150 2

Standard Seaworthy Export Packing:

Color-coated coils are typically packed and shipped in a way that ensures their protection during transportation and handling. Common types of packing include coil packaging with edge protectors and VCI (volatile corrosion inhibitor) paper, followed by secure bundling with steel straps or wrapping with plastic film.

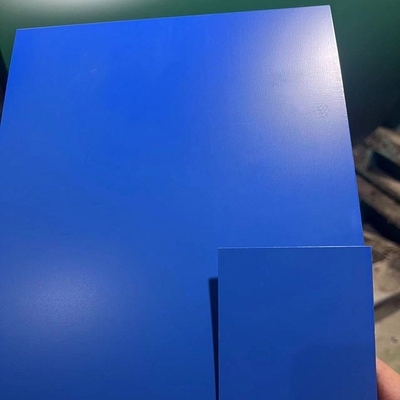

Anti-Fingerprint Prepainted Galvalume Steel Coil Alu Zinc Coated AZ50-150 3



FAQ:

Q1: How durable is PPGL roofing/cladding sheet?
A1: PPGL sheets last over 20 years with proper installation and mild cleaning. The galvalume coating and premium paint provides long-term corrosion resistance.



Q2: What type of climates can PPGL sheets be used in?
A2: PPGL is suitable for all 4 seasons and can withstand extreme temperatures, humidity, rainfall etc. making it ideal for most countries/regions.



Q3: How much weight can PPGL cladding panels hold?
A3: PPGL sheets have high strength-to-weight ratios. 0.5mm panels can safely hold 35-50kg/sqm static loads under normal conditions.



Q4: What maintenance is required for PPGL cladding/roofs over time?
A4: Periodic washing using a soft brush and mild detergent is sufficient to retain the looks of PPGL for decades.



Q5:What is the difference between PPGL and PPGI?

A5:PPGL stands for Pre-Painted Galvalume, which uses a galvalume substrate (a combination of galvanized steel and aluminum-zinc alloy coating). PPGI stands for Pre-Painted Galvanized Iron, which uses a galvanized steel substrate. The choice between the two depends on specific application requirements and environmental conditions.



Q6:What are the standard thicknesses and widths available for PPGL?

A6:PPGL is available in various thicknesses, typically ranging from 0.15mm to 1.5mm. The standard widths can vary based on manufacturers and customer requirements.



Q7:How does PPGL perform in coastal or high-corrosion environments?

A7:PPGL's aluminum and zinc coating provides excellent corrosion resistance, making it well-suited for coastal or high-corrosion environments. However, it's important to consider the specific environmental conditions and consult with the supplier for appropriate product selection.
