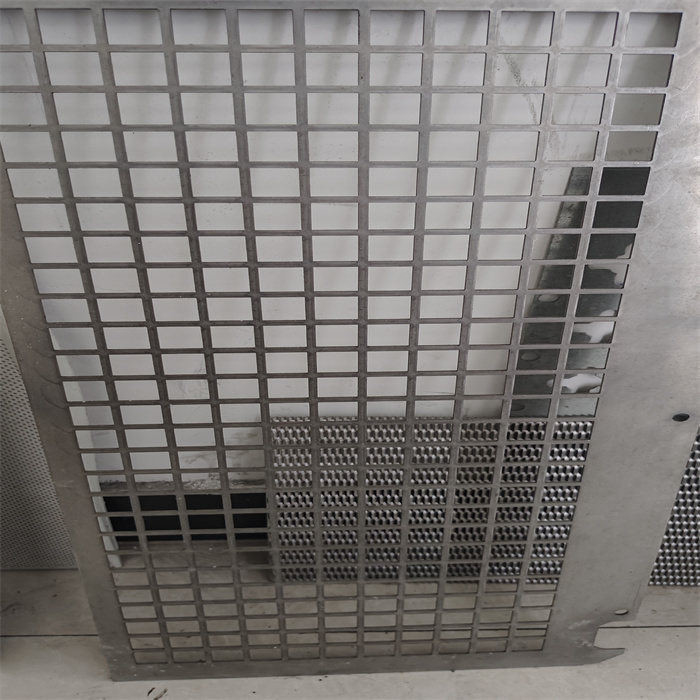

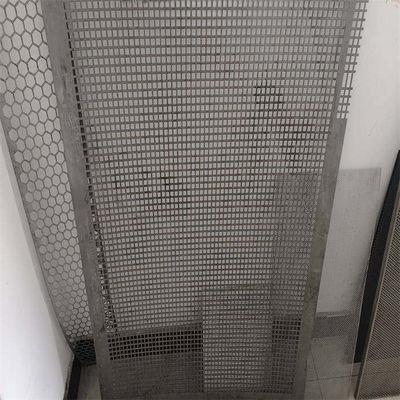

1cm*2cm Rectangular Aperture Galvanized Punched Metal Mesh For Filtering Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | HUIYI-GI |
| Certification: | SGS , BV , ISO9001 |
| Model Number: | SGCH,G550 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25tons each thickness |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard exporting package, wrapped with waterproof paper. Then after fully wrapped with high density PE film. Then after fully covered with iron sheet with metal edge protectors, strapped with metal bands, min 4 bands horizontal, min 3 bands vertical. |
| Delivery Time: | 15-35days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10000 tons per month |
|
Detail Information |
|||
| Product Name: | Rectangular Punched Metal Mesh | Material: | Stainless Steel, Aluminum Plate, Hot And Cold Steel Plate, Copper Plate |
|---|---|---|---|
| Aperture Size: | 3mm-10mm | Thickness: | 0.2-10mm |
| Color: | Black, White, Grey, Blue, Green, Yellow | Hole Type: | Round Hole, Round Hole, Long Waist Hole, Square Hole, Square Hole, Cross Hole |
| Application: | Construction Wire Mesh, Protecting Mesh, Decorative Mesh, Filter | Porosity: | 10-80% |
| Highlight: | Rectangular Aperture Punched Metal Mesh,Galvanized Punched Metal Mesh,Perforated Galvanized Metal Mesh |
||
Product Description
1cm*2cm Rectangular Aperture Galvanized Punched Metal Mesh For Filtering Equipment
Introdcutions of Perforated Sheet :
Perforated Sheet, available in several different metals, is often used for decorative or filter purposes. Its perforations allow light, air, liquid and sound to pass through its openings. Having a large assortment of hold openings and spacing allow for a wide selection of sizes to fit your particular application.
Specifications of Perforated Sheet :
| Plate Material |
Thickness of Metal (mm) |
Hole Dia. (mm) |
Pitch (mm) |
Sheet Width (m) |
Sheet Length (m) |
Porosity (%) |
Weight (kg/m2) |
| Rolling plate |
0.2 | 6 | 2 | 1 | 20 | 44 | 0.88 |
| 0.35 | 5 | 4 | 1 | 20 | 24 | 2 | |
| 0.45 | 6 | 3 | 1 | 20 | 35 | 2.5 | |
| 0.8 | 3 | 3 | 1 | 20 | 19.6 | 3 | |
| Flat plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.55 | 1.1 | 2.2 | 1 | 2 | 22.67 | 3.411 | |
| 0.55 | 1.5 | 2.8 | 1 | 2 | 26.03 | 3.268 | |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 0.8 | 2.0 | 3.4 | 1 | 2 | 30.78 | 4.465 | |
| 1.5 | 2 | 2 | 1 | 2 | 19.6 | 9.4 | |
| 1.5 | 5.0 | 8.0 | 1 | 2 | 35.39 | 7.843 | |
| 3 | 5 | 16 | 1 | 2 | 19.6 | 18.8 | |
| Stainless steel plate |
0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 1 | 2 | 2 | 1 | 2 | 19.6 | 6.28 | |
| 2 | 5 | 16 | 1 | 2 | 19.6 | 6.28 | |
| Aluminum plate |
0.5 | 1 | 1 | 1 | 2 | 19.6 | 1.08 |
| 0.8 | 3 | 3 | 1 | 2 | 19.6 | 1.72 | |
| 1.6 | 2 | 2 | 1 | 2 | 19.6 | 3.24 | |
| 3 | 4 | 16 | 1 | 2 | 19.6 |
Production Process:
By CNC punching machine tool → cutting plate bending → welding → forming hole type (iron plate can be hot-dip galvanized rust prevention treatment).
Application of Perforated Sheet :
It is suitable for sewage treatment, tap water, power plant and other industrial outdoor, vehicle anti-skid board, train boarding board, ladder board is also used for mechanical anti-skid and interior decoration anti-skid.
Packing&Delivery
Packing:
(1):Standard seaworthy export packing, wooden pallets with plastics protection .
(2) Max 20-25MT can be loaded into 20'container and 40'container.
(3)The other packing can be made based on the customer requirement.
Delivery time:
If we have stocks for your demanded size, we can deliver within 15 days.
For customised sizes, we can guarantee delivery within 45 days.
FAQ
Stainless steel, aluminum plate, hot and cold steel plate, copper plate, etc.
5.Do you provide samples ? is it free or extra ?
The sample could can provide for customer with free, but the courier freight will be covered by customer account.
6.How can we get the offer?
Please offer the specification of the product, such as material, size, shape, etc. So we can give you the best offer.
7. How long is your delivery time?
Generally it is 7-14 days if the goods are in stock. Or it is 25-45 days if the goods are not in stock, it is according to quantity.
