Fireproof Sound Separation Fiberglass Wool Insulation 100mm Thickness

Fireproof Sound Separation Fiberglass Wool Insulation 100mm Thickness

Product Details:

Place of Origin: China
Brand Name: HUIYI
Certification: CE,ISO ,BV,A1,AS/NZ
Model Number: SHHY

Payment & Shipping Terms:

Minimum Order Quantity: 1 Container
Price: Negotiation
Packaging Details: water proof paper & plastic film & protective steel sheet & protecting plate of inner & side panel & outside and inside diameter ring & metal band strapping & circumferential bands in steel
Delivery Time: 15-35days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000 tons per month
Get Best Price Contact Now

Detail Information

Product Name: Fiberglass Wool Roll Type: Glass Wool Insulation, ISOKING 25mm Thick Glass Wool Insulatio...
Width: 0.4-1.2m Heat Conductivity: 0.038-0.042 W/m.k
Highest Working Temperature:: 350℃ Application: Warehouse, Duct/roof/wall
Design Style: Modern Material: Glass Fiber
Thickness: 20-100mm Apparent Density: 10-50kg/m3
Highlight:

100mm Fiberglass Wool Insulation

,

Sound Separation Fiberglass Wool Insulation

,

Fireproof Glass Fibre Insulation

Product Description

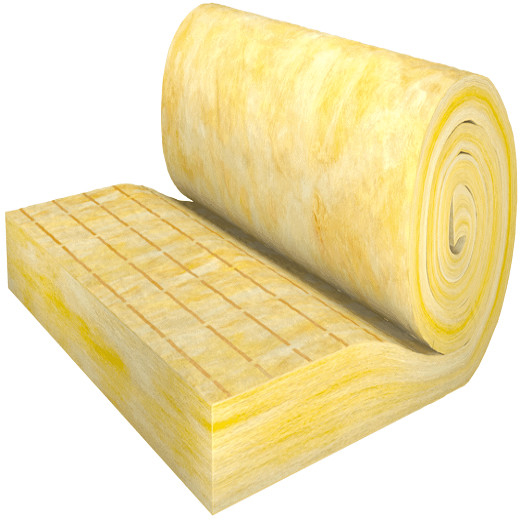

Yellow 100mm thickness Fiberglass wool Insulation fireproof sound separation



Introduction of Fiberglass wool insulation :


Fiberglass wool insulation is placed in the glass of meltdown appearance proceed the fiber turn and spray the resin of solid that draw the hot silk wadding form material, then turn through hot solid the deep processing handles and can also make into the series and various products. Huali glass wool felt is divided into bare felt and veneer rolled felt, which can effectively resist moisture, sound absorption, corrosion, and aesthetics. The surface layer is added to increase the product's breaking resistance, breakdown resistance, high tensile strength, beautiful appearance and simple construction.



Product Type
LengthX Width(m)
THK(mm)
HLBRL10
20*1.2
50-150mm
HLBRL12
15*1.2
40-150mm
HLBRL16
15*1.2
30-150mm
HLBRL18
10*1.2
30-150mm
HLBRL24
10*1.2
25-150mm
HLBRL32
10*1.2
25-130mm
HLBRL40
10*1.2
25-80mm
HLBRL48
10*1.2
25-80mm



Details of Fiberglass wool insulation :



Performance item Performance parameter Compliance with standards
Working temperature range -100 to +450℃ Working temperature range
Corrosion resistance No chemical reaction GB/T 17393
Average fiber diameter 5-7 GB/T 5480

Slag ball content

(particle size>0.25mm)

≤0.3 GB/T 5480
Water content ≤1.0% GB/T 20313
Moisture absorption rate ≤5.0% GB/T 5480
Hydrophobic rate ≥98% GB/T 10299
Thermal load shrinkage temperature ≥300 ≥350 ≥350 ≥400 GB/T 5480

Thermal conductivity k

(W/m. ℃)

≤0.038 GB/T 10294
Combustion performance grade A1 non-combustible material GB/T 8624-2012



Specifications of Fiberglass wool insulation :



Bulk density(kg/m3) 10-150kg/m3
Thickness(mm) 20-100mm
Width(mm) 0.4-1.2m
Length(mm) 3-30m (as customer's requirements)
Color Yellow, White, Pink, Brown or customize
Port of Loading Qingdao Port, China



Features of Fiberglass wool insulation :

  • Long lasting
  • Free from flaws
  • Quality assured



Advantages of Fiberglass wool insulation :

  1. Fireproof
  2. Waterproof
  3. Lightweight
  4. Eco-friendly
  5. Easy to install
  6. Heat insulation
  7. Thermal insulation
  8. Soundproof



Package and Delivery of Fiberglass wool insulation :



Fireproof Sound Separation Fiberglass Wool Insulation 100mm Thickness 0Fireproof Sound Separation Fiberglass Wool Insulation 100mm Thickness 1Fireproof Sound Separation Fiberglass Wool Insulation 100mm Thickness 2Fireproof Sound Separation Fiberglass Wool Insulation 100mm Thickness 3



FAQ:



Q: Can you accept neutral packing & OEM ?
A: Normally, our packing is carton , but we can accept the neutral packing and OEM.

Q: Can you provide the sample for free ?
A: We provide some samples for free.



Q: What's the lead time?

A: 15-35 days after receipt of advanced payment



Q: What's the payment term?

A: 30% advanced payment and 70% paid prior to load by TT. and large amount can be paid by LC.
