150mm Thickness Fiberglass Wool Insulation Batts For Thermal Insulation
Product Details:
| Place of Origin: | China |
| Brand Name: | HUIYI |
| Certification: | CE,ISO ,BV,A1,AS/NZ |
| Model Number: | SHHY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Container |
|---|---|
| Price: | Negotiation |
| Packaging Details: | water proof paper & plastic film & protective steel sheet & protecting plate of inner & side panel & outside and inside diameter ring & metal band strapping & circumferential bands in steel |
| Delivery Time: | 15-35days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 5000 tons per month |
|
Detail Information |
|||
| Product Name: | Fiberglass Wool Roll | Type: | Glass Wool Insulation, ISOKING 25mm Thick Glass Wool Insulatio... |
|---|---|---|---|
| Width: | 1200MM | Heat Conductivity: | 0.038-0.042 W/m.k |
| Highest Working Temperature:: | 350℃ | Application: | Warehouse, Duct/roof/wall |
| Design Style: | Modern | Material: | Glass Fiber |
| Thickness: | 25-150mm | Apparent Density: | 10-50kg/m3 |
| Highlight: | Fiberglass Wool Insulation Batts,Thermal Insulation Fiberglass Wool,150mm Glass Wool Insulation Roll |
||
Product Description

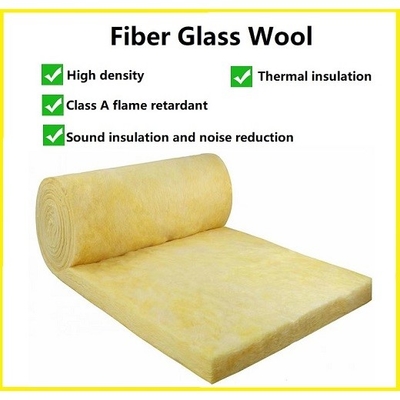

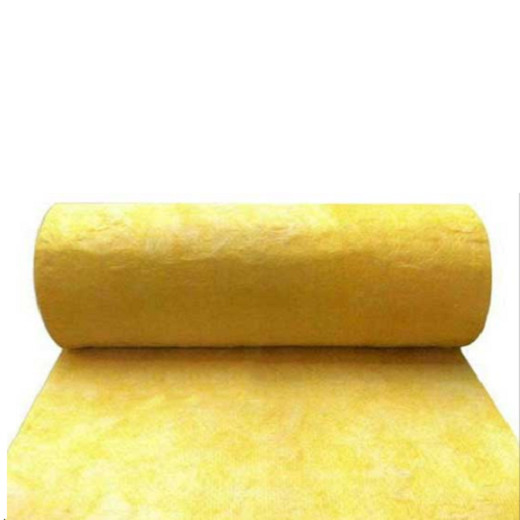

150mm thickness Fiberglass wool Insulation Batts For thermal insulation
Introduction of Fiberglass wool insulation :
Fiberglass wool insulation is placed in the glass of meltdown appearance proceed the fiber turn and spray the resin of solid that draw the hot silk wadding form material, then turn through hot solid the deep processing handles and can also make into the series and various products. Huali glass wool felt is divided into bare felt and veneer rolled felt, which can effectively resist moisture, sound absorption, corrosion, and aesthetics. The surface layer is added to increase the product's breaking resistance, breakdown resistance, high tensile strength, beautiful appearance and simple construction.
|
Product Type
|
LengthX Width(m)
|
THK(mm)
|
|
HLBRL10
|
20*1.2
|
50-150mm
|
|
HLBRL12
|
15*1.2
|
40-150mm
|
|
HLBRL16
|
15*1.2
|
30-150mm
|
|
HLBRL18
|
10*1.2
|
30-150mm
|
|
HLBRL24
|
10*1.2
|
25-150mm
|
|
HLBRL32
|
10*1.2
|
25-130mm
|
|
HLBRL40
|
10*1.2
|
25-80mm
|
|
HLBRL48
|
10*1.2
|
25-80mm
|
Details of Fiberglass wool insulation :
| Item | Unit | Index | The measured figure | Remarks |
| Volume weight | kg/m3 | 10-96 | 10-96 | GB/T 13350-2000 |
| Average fiber diameter | μm | <8.0 | 4.0-6.0 | GB/T13350-2000 |
| Hydrophobic | % | >98 | >98.5 | JISA9512-2000 |
| Heat conduct coefficient | W/m·K | 0.049-0.042 | 0.045-0.032 | GB/T13350-2000 |
| Incombustibility | Incombustible | Qualified (Grade A) | GB/T13350-2000 | |
| Heat absorption coefficient | 1.03 product reverberation method 24kg/m32000HZ |
GB/J47-83 | ||
| Highest usage temperature | °C | 400 | 410 | GB/T133 |
Technical Parameters
Conductivity Coefficient 0.036W/M.K0.042W/M.K
Fiber diameter <6 um
Heat resistance coefficient 1.16-2.56M2.K/M
Non-combustibility A1(nonflaming)
Water absorption 0.2%
Water repellent rate 99%
Corrosion resistance Nice chemical stability
Moldy resistance capacity No poison No mildew
Sound insulation coefficient 500HZ 1.13--1.22
1000HZ 1.09-1.06
2000HZ 1.04-1.00
Specifications of Fiberglass wool insulation :
- Density: 12 Kg/M3 - 48 Kg/M3
- In standard thickness of 25 mm and 50 mm
- Used specifically for: Hot Insulation / Acoustic Insulation / Under deck Insulation / In panel Insulations
- Its available in Plain Finish / One Side Aluminum foil Finish / Tissue Finish / Vinyl paper Laminated finish
Features of Fiberglass wool insulation :
- Long lasting
- Free from flaws
- Quality assured
Advantages of Fiberglass wool insulation :
- Fireproof
- Waterproof
- Lightweight
- Eco-friendly
- Easy to install
- Heat insulation
- Thermal insulation
- Soundproof
Package and Delivery of Fiberglass wool insulation :
FAQ:
Q: Can you accept neutral packing & OEM ?
A: Normally, our packing is carton , but we can accept the neutral packing and OEM.
Q: Can you provide the sample for free ?
A: We provide some samples for free.
Q: What's the lead time?
A: 15-35 days after receipt of advanced payment
Q: What's the payment term?
A: 30% advanced payment and 70% paid prior to load by TT. and large amount can be paid by LC.
