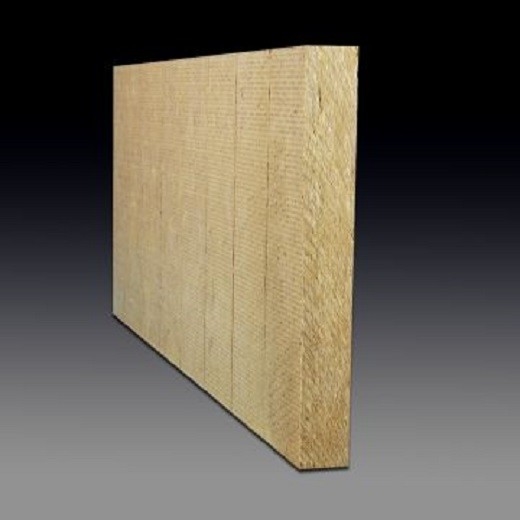

Heat Prevention Grade A Mineral Rock Wool Board Insulation 150mm Thickness
Product Details:
Place of Origin: | China |
Brand Name: | HUIYI |
Certification: | SGS , BV , ISO9001 |
Model Number: | SHHY |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Container |
---|---|
Price: | Negotiation |
Packaging Details: | water proof paper & plastic film & protective steel sheet & protecting plate of inner & side panel & outside and inside diameter ring & metal band strapping & circumferential bands in steel |
Delivery Time: | 15-35days |
Payment Terms: | L/C, D/P, T/T |
Supply Ability: | 5000 tons per month |
Detail Information |
|||
Rroduct Name: | Rock Wool Board | Type: | Rock Wool Products |
---|---|---|---|
Color: | Yellow Green | Density: | 60-200kg/m3 |
Width: | 600-1200mm | Size: | Customzied |
Application: | Apartment, Building | Thickness: | 25-150mm |
Highlight: | Mineral Rock Wool Board,Heat Prevention Mineral Wool Sheet,150mm Rockwool Rigid Board |
Product Description
Excellent heat prevention 150mm thickness Grade A rock wool board insulation density,mineral wool sheet
Introduction of Rock wool board :
Rock wool board is a thermal insulation product for high temperatures surfaces of upto 1000 degrees Celsius. It is also the best material for soundproofing in partitions blocking any outgoing or incoming noise completely.
Paramenters of Rock wool board :
Product Name
|
Rock Wool board
|
Certificate
|
CE ,test report MSDS
|
Materials
|
Basalt rock wool
|
Package
|
Plastic bag inside
|
Application
|
Thermal insulation
|
Item
|
Specification
|
Color
|
Yellow Grey
|
Hydrophobic coefficient
|
≥ 98
|
Length
|
1200mm/2400mm
|
Maximu service temperature
|
℃ ≤ 650
|
Density
|
60-180kg/m3
|
Inflammable property
|
Noninflammable class A
|
Width
|
1200mm/600mm
|
Outer packaging
|
Customizable
|
Thickness
|
25-150mm
|
Brand
|
HUIYI |
Applicaiton of Rock wool board :
Application
|
Board
|
Blanket
|
Pipe
|
Bulk
|
Cubes
|
|
Industry
|
Boiler, Heating processing equipment, oven
|
√
|
√
|
|
|
|
Power equipment, flue, chimney
|
√
|
√
|
|
|
|
|
Chemical, petrochemical, refining equipment
|
√
|
√
|
|
|
|
|
Storage tank
|
√
|
√
|
|
|
|
|
Small and medium diameter pipeline
|
|
√
|
√
|
|
|
|
Big diameter pipeline (above 610mm)
|
|
√
|
|
|
|
|
Pipeline elbow, valve, flange etc.
|
|
√
|
|
|
|
|
Insulation gap filling
|
|
|
|
√
|
|
|
Building
|
Building wall acoustic, fireproof
|
√
|
√
|
|
|
|
Curtain wall acoustic, fireproof
|
√
|
√
|
|
|
|
|
Fireproof wall, fireproof door, fireproof filling
|
√
|
√
|
|
|
|
|
Elevator shaft acoustic , fireproof
|
√
|
√
|
|
|
|
|
Steel structure fireproof spraying
|
|
|
|
√
|
|
|
Roof insulation
|
√
|
√
|
|
|
|
|
Boat
|
Shipbuilding
|
√
|
√
|
|
|
|
Agriculture
|
Vegetable,fruit, flower grows seedings
|
|
|
|
|
√
|
Details of Rock wool board :
- Application : For High Performance Commercial or Residential Wall Systems, Hot Service Applications
- Compressive Strength : 439 psf at 10%, 1065 psf at 25 %
- Density : 10 pcf
- Flame Spread Index : 0
- Insulation Thickness : 1 in
- Item Name : Mineral Wool Board
- Length : 48 in
- Material : Mineral Wool
- Smoke Developed Index : 0
- Temperature Rating : 1200 deg F
- Thermal Conductivity : 4 Btu-in/hr-sq-ft-deg F
- Water Vapor Sorption : 0.05 %
- Width : 24 in
Features of Rock wool board:
Rock wool board is an exterior non-structural insulation sheathing that provides a continuous layer of insulation around the commercial or residential building envelope. This product is specifically engineered as exterior non-structural insulation sheathing for high performance commercial or residential wall systems.
- Can be easily cut with a bread knife
- Non-combustible with a melting point of approximately 1177 deg C
- Excellent sound absorption
- Vapor permeable
- Does not rot or promote the growth of fungi or mildew
- Low moisture absorption
- Chemically inert, non-corrosive
- Water repellent
- CFC and HCFC-free product and process
- Made from natural and recycled materials
- Rockwool can contribute to earning LEED points
Standards/Certifications: ASTM C165|ASTM C303|ASTM C518|ASTM C612|ASTM E84|CAN/ULC S102|CAN/ULC S114|CAN/ULC S702

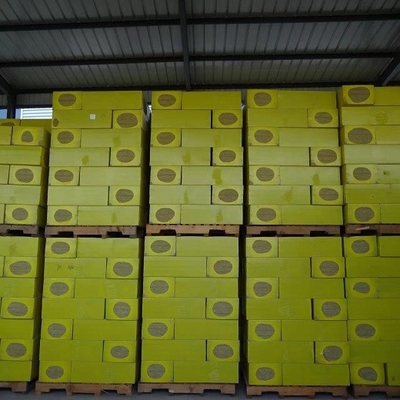

Package and delivery of rock wool board :
FAQ:
Q:Are you a trading company or a manufacturer?
A:We are one of the biggest and professional manufacturer in China. Our products are hot-sale due to our superior quality, competitive price and the best after-sales service.
Q:How about the MOQ?
A:Generally, the MOQ can be placed depending on different products.
Q:How about the sample if I need?
A:The sample is free of charge
Q:Do you have English Mill Test Certificates?
A:Yes, we can provide MTC attached to your documents.
Q:What is shipment terms?
A: 1. Container ship 2. Bulk ship 3. Train
Q:How about the delivery time?
A:About 10-25 days after receiving the deposit. Certainly, the detail will be confirmed by the quantity and the different products.
