150mm Thermal Insulation Rock Wool Board Basalt Fiber Slab For Building Apartment

150mm Thermal Insulation Rock Wool Board Basalt Fiber Slab For Building Apartment

Product Details:

Place of Origin: China
Brand Name: HUIYI
Certification: SGS , BV , ISO9001
Model Number: SHHY

Payment & Shipping Terms:

Minimum Order Quantity: 1 Container
Price: Negotiation
Packaging Details: water proof paper & plastic film & protective steel sheet & protecting plate of inner & side panel & outside and inside diameter ring & metal band strapping & circumferential bands in steel
Delivery Time: 15-35days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000 tons per month
Get Best Price Contact Now

Detail Information

Rroduct Name: Rock Wool Board Type: Rock Wool Products
Color: Yellow Green Density: 60-200kg/m3
Width: 600-1200mm Size: Customzied
Application: Apartment, Building Thickness: 25-150mm
Highlight:

Building Rockwool Rigid Board

,

150mm Rock Wool Insulation Board

,

Thermal Insulation Basalt Rock Wool

Product Description

150mm thickness thermal insulation rock wool board basalt fiber slab for building and apartment



Introduction of Rock wool board :



Rock wool board is a thermal insulation product for high temperatures surfaces of upto 1000 degrees Celsius. It is also the best material for soundproofing in partitions blocking any outgoing or incoming noise completely.

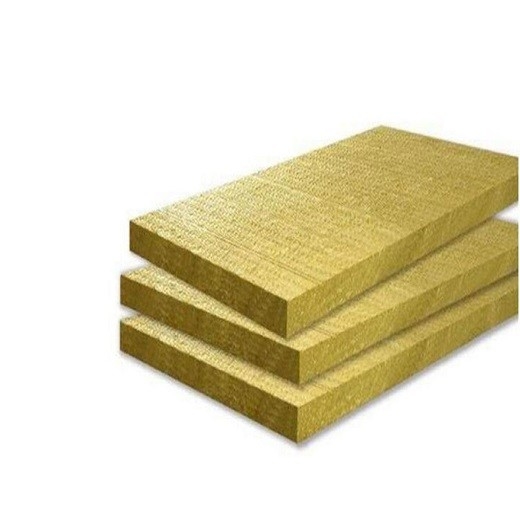

150mm Thermal Insulation Rock Wool Board Basalt Fiber Slab For Building Apartment 0



Paramenters of Rock wool board :



Properties
Unit
Density
80
100
120
140
150
160
Combustion performance
--
Class A1 non-combustion
Compression Strength(10%deformation)
kPa
≥40
Hydrophobic rate
%
≥98.0
Melt temperature
>1000
Acidity ratio
--
≥1.8
Moisture absorption rate
%
≤1.0
Thermal conductivity(average 25℃)
W(m.k)
≤0.048
≤0.040
Dimensional stability
%
≤1.0
Water absorption(Partial Immersion)
Kg/m2
Short term(24h)≤1.0
Long term(28d)≤3.0
Thickness tolerance
mm
±2
±3
Right angel degree of deviation
mm/m
≤5
Planeness tolerance
mm
≤6
properties after ignition-burning
Shrinkage percentage
%
(750℃,0.5h)≤8
Mass loss rate
%
(750℃,0.5h)≤10



Applicaiton of Rock wool board :



Application
Board
Blanket
Pipe
Bulk
Cubes






Industry
Boiler, Heating processing equipment, oven






Power equipment, flue, chimney






Chemical, petrochemical, refining equipment






Storage tank






Small and medium diameter pipeline






Big diameter pipeline (above 610mm)











Pipeline elbow, valve, flange etc.








Insulation gap filling











Building
Building wall acoustic, fireproof






Curtain wall acoustic, fireproof






Fireproof wall, fireproof door, fireproof filling






Elevator shaft acoustic , fireproof






Steel structure fireproof spraying








Roof insulation






Boat
Shipbuilding






Agriculture
Vegetable,fruit, flower grows seedings











Details of Rock wool board :

  1. Application : For High Performance Commercial or Residential Wall Systems, Hot Service Applications
  2. Compressive Strength : 439 psf at 10%, 1065 psf at 25 %
  3. Density : 10 pcf
  4. Flame Spread Index : 0
  5. Insulation Thickness : 1 in
  6. Item Name : Mineral Wool Board
  7. Length : 48 in
  8. Material : Mineral Wool
  9. Smoke Developed Index : 0
  10. Temperature Rating : 1200 deg F
  11. Thermal Conductivity : 4 Btu-in/hr-sq-ft-deg F
  12. Water Vapor Sorption : 0.05 %
  13. Width : 24 in

Features of Rock wool board:



Rock wool board is an exterior non-structural insulation sheathing that provides a continuous layer of insulation around the commercial or residential building envelope. This product is specifically engineered as exterior non-structural insulation sheathing for high performance commercial or residential wall systems.

  • Can be easily cut with a bread knife
  • Non-combustible with a melting point of approximately 1177 deg C
  • Excellent sound absorption
  • Vapor permeable
  • Does not rot or promote the growth of fungi or mildew
  • Low moisture absorption
  • Chemically inert, non-corrosive
  • Water repellent
  • CFC and HCFC-free product and process
  • Made from natural and recycled materials
  • Rockwool can contribute to earning LEED points

Standards/Certifications: ASTM C165|ASTM C303|ASTM C518|ASTM C612|ASTM E84|CAN/ULC S102|CAN/ULC S114|CAN/ULC S702

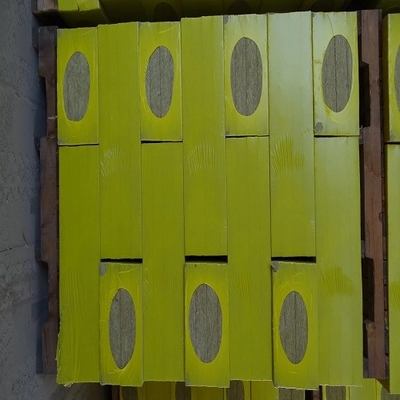

Package and delivery of rock wool board :



150mm Thermal Insulation Rock Wool Board Basalt Fiber Slab For Building Apartment 1150mm Thermal Insulation Rock Wool Board Basalt Fiber Slab For Building Apartment 2150mm Thermal Insulation Rock Wool Board Basalt Fiber Slab For Building Apartment 3150mm Thermal Insulation Rock Wool Board Basalt Fiber Slab For Building Apartment 4



FAQ:



Q:Are you a trading company or a manufacturer?



A:We are one of the biggest and professional manufacturer in China. Our products are hot-sale due to our superior quality, competitive price and the best after-sales service.



Q:How about the MOQ?



A:Generally, the MOQ can be placed depending on different products.



Q:How about the sample if I need?



A:The sample is free of charge



Q:Do you have English Mill Test Certificates?



A:Yes, we can provide MTC attached to your documents.



Q:What is shipment terms?



A: 1. Container ship 2. Bulk ship 3. Train



Q:How about the delivery time?


A:About 10-25 days after receiving the deposit. Certainly, the detail will be confirmed by the quantity and the different products.
