1200MM Width Fiberglass Insulation Batts For Ceiling Wall
Product Details:
| Place of Origin: | China |
| Brand Name: | HUIYI |
| Certification: | CE,ISO ,BV,A1,AS/NZ |
| Model Number: | SHHY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Container |
|---|---|
| Price: | Negotiation |
| Packaging Details: | water proof paper & plastic film & protective steel sheet & protecting plate of inner & side panel & outside and inside diameter ring & metal band strapping & circumferential bands in steel |
| Delivery Time: | 15-35days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 5000 tons per month |
|
Detail Information |
|||
| Product Name: | Fiberglass Wool Roll | Type: | Glass Wool Insulation, ISOKING 25mm Thick Glass Wool Insulatio... |
|---|---|---|---|
| Width: | 1200MM | Heat Conductivity: | 0.038-0.042 W/m.k |
| Highest Working Temperature:: | 350℃ | Application: | Warehouse, Duct/roof/wall |
| Design Style: | Modern | Material: | Glass Fiber |
| Thickness: | 25-150mm | Apparent Density: | 10-50kg/m3 |
| Highlight: | 1200mm Width Fiberglass Insulation Batts,Ceiling Fiberglass Insulation Batts,Wall Glass Wool Insulation Roll |
||
Product Description

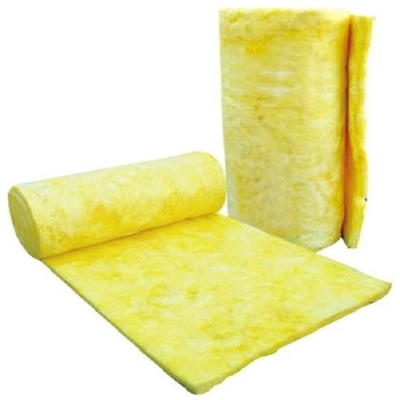

1200MM width Fiberglass insulation batts for ceiling and wall Insulation
Introduction of Fiberglass wool roll :
Fiberglass wool product is a kind of thin fiber, low thermal conductivity insulation material, the special structure determines that it can be very good Imprison the air, so that it can not flow, put an end to the air convection heat transfer, but also can quickly reduce the transmission of sound, so as to heat and sound-absorbing effect.Fiberglass wool includes two series of glass wool blanket and glass wool board.
Fiberglass wool blanket is mainly divided into two categories: non-veneered blanket and composite veneered blanket.Products are widely used in the workshop, warehouse Refrigeration room, gymnasium, exhibition center, breeding and planting shelter, steel structure building and various indoor amusement places.Fiberglass wool board can also be divided into two categories: no-stick panel and composite stick panel.Is to add glass wool to a thermosetting binder.
Plate formed by pressure treatment, heating and curing.Compared with the glass wool blanket, the sheet has more excellent and stable sound-absorbing and heat-absorbing performance . It is widely used in industrial and residential building exterior wall insulation system, as well as air conditioning and other fields
The complete glass wool production line uses the latest generation technology to produce panels, rolls of felt and piping for residential and industrial thermal and acoustic insulation in accordance with the highest international standards (EN, DIN, ASTM).
|
Item
|
Unit
|
Index
|
|
Density
|
kg/m3
|
10-48
|
|
Thickness
|
mm
|
25-200
|
|
Length
|
m
|
5-30
|
|
Width
|
mm
|
600-1250
|
Details of Fiberglass wool roll :
| Item | Unit | Index | The measured figure | Remarks |
| Volume weight | kg/m3 | 10-96 | 10-96 | GB/T 13350-2000 |
| Average fiber diameter | μm | <8.0 | 4.0-6.0 | GB/T13350-2000 |
| Hydrophobic | % | >98 | >98.5 | JISA9512-2000 |
| Heat conduct coefficient | W/m·K | 0.049-0.042 | 0.045-0.032 | GB/T13350-2000 |
| Incombustibility | Incombustible | Qualified (Grade A) | GB/T13350-2000 | |
| Heat absorption coefficient | 1.03 product reverberation method 24kg/m32000HZ |
GB/J47-83 | ||
| Highest usage temperature | °C | 400 | 410 | GB/T133 |
Technical Parameters
Conductivity Coefficient 0.036W/M.K0.042W/M.K
Fiber diameter <6 um
Heat resistance coefficient 1.16-2.56M2.K/M
Non-combustibility A1(nonflaming)
Water absorption 0.2%
Water repellent rate 99%
Corrosion resistance Nice chemical stability
Moldy resistance capacity No poison No mildew
Sound insulation coefficient 500HZ 1.13--1.22
1000HZ 1.09-1.06
2000HZ 1.04-1.00
Specifications of Fiberglass wool roll:
- Density: 12 Kg/M3 - 48 Kg/M3
- In standard thickness of 25 mm and 50 mm
- Used specifically for: Hot Insulation / Acoustic Insulation / Under deck Insulation / In panel Insulations

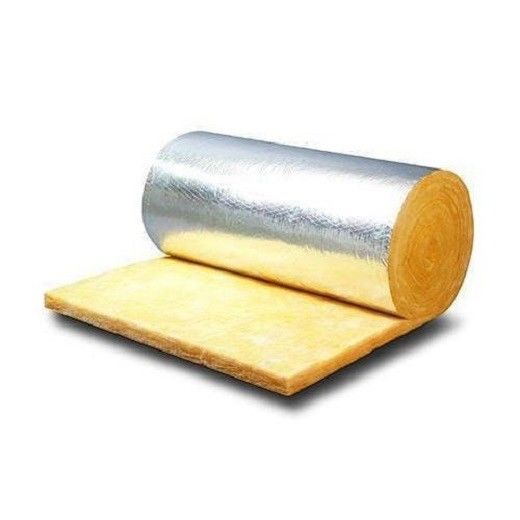

- Its available in Plain Finish / One Side Aluminum foil Finish / Tissue Finish / Vinyl paper Laminated finish
Features of Fiberglass wool roll:
- Long lasting
- Free from flaws
- Quality assured
Advantages of Fiberglass wool roll:
- Fireproof
- Waterproof
- Lightweight
- Eco-friendly
- Easy to install
- Heat insulation
- Thermal insulation
- Soundproof
Package and Delivery of Fiberglass wool :
FAQ:
Q: Can you accept neutral packing & OEM ?
A: Normally, our packing is carton , but we can accept the neutral packing and OEM.
Q: Can you provide the sample for free ?
A: We provide some samples for free.
Q: What's the lead time?
A: 15-35 days after receipt of advanced payment
Q: What's the payment term?
A: 30% advanced payment and 70% paid prior to load by TT. and large amount can be paid by LC.
