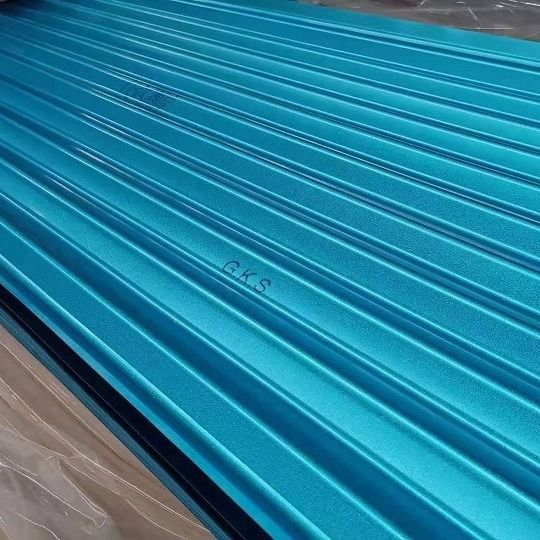

GL Blue Prepainted Galvalume Steel Coils Anti Finger Print
Product Details:
| Place of Origin: | China |
| Brand Name: | HUYI-GI |
| Certification: | SGS , BV , ISO9001 |
| Model Number: | G550 , G450 , G300 , DX51D+AZ , DX52D+AZ , SGLCC,SGLCH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25tons each thickness |
|---|---|
| Price: | Negotiation |
| Packaging Details: | water proof paper & plastic film & protective steel sheet & protecting plate of inner & side panel & outside and inside diameter ring & metal band strapping & circumferential bands in steel |
| Delivery Time: | 15-35 days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 5000 tons per month |
|
Detail Information |
|||
| Product Name: | Color Coated 55%Galvalume Steel Coil / GL Blue / Cold Rolled , Minimised Spangle , Anti-Finger Print | Surface: | Regular Spangle ，Minimise Spangle |
|---|---|---|---|
| Color: | Blue , White , Green , Red , Brown Etc. | Width: | 32mm-685mm |
| Thickness: | 0.7mm-2.0mm | Zinc-coating: | AZ30-AZ150 |
| Standard: | ASTM , AISI , GB , JIS , DIN | Shape: | Coil / Flat /Corrugated |
| Coil ID: | 508mm/610mm | Surface Treatment: | Blue AFP Or Non-AFP |
| Highlight: | GL Blue prepainted galvalume steel coils,HUYI G550 color coated steel coil,HUYI 0.7mm prepainted galvalume steel coils |
||
Product Description
Color Coated 55%Galvalume Steel Coil / GL Blue / Cold Rolled , Minimised Spangle , Anti-Finger Print
Introduction:
Galvalume is a product which is very similar to Galvanized steel but with better corrosion resistance(up to 3 times life of galvanized).The supperior properties of galvalume arise from the unique composition(43.5%Zn,1.5%Si,55%AL) of the metallic coating.Aluminized zinc silicon steel sheet is made up of 55% aluminum, 43.4% zinc and 1.6% silicon at 600 C .The surface is bright and clean ,the size is accurate , the coil surface is straight , the zinc flower is even and beautiful . After its surface is finished , it is a good substrate for making anticorrosive coating plates . The aluminized zine silicon steel plate is a structure of aluminum zinc alloy. It is an important alloy material frequently used in daily life . The whole structure is composed of aluminum, one iron, one silicon and one zinc, forming a compact four element crystal. Heat plated aluminum, zinc and silicon (GL) products, with various strength and thickness of the cold rolled steel plate as the base material, on the surface of the strip, heat plating aluminum (AL55%), zinc (ZN43.4%), silicon (S11.6%) alloy, have excellent corrosion resistance.
Application range:
Construction: the shutter , the roof of the building, the exterior wall, the garage door, the fence.
Home appliance industry: solar water heater , oven , electrical components , air conditioning and ventilation system outside the cover.
Automobile industry: automobile muffler , exhaust pipes and a catalytic converter heat shield , the bottom part of the car body ,road signs.
Industrial instrumentation: industrial refrigeration cabine t, electric control cabinet , vending machine.
| Products | 55% Blue Galvalume steel coil |
| Standard | ASTM A653 , JIS G3321 , GB/T3830-2006 |
| Grade | G550 , G450 , G300,DX51D+AZ,DX52D+AZ, SGLCC,SGLCH |
| Thickness | 0.12mm-2.0mm |
| Width | 30mm-1500mm |
| Base Metal | Cold Rolled Steel |
| AL-Zinc Coating | AZ30-150g/sqm |
| Coil Internal Diameter | 508mm/610mm |
| Surface Treatment | Chromating , Oiled |
| Tolerance | Thickness:+/-0.05mm , Width:+5/-2mm , Total Quantity:+/-10% , Zinc Coating:+/-10% |
| Surface Finish | Regular spangle ,Minimise spangle |
Galvalume steel loading pictures:
