Z275 DX52D Printing PPGI Steel Coil For Roofing
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HUIYI |
| Certification: | SGS,ISO,BV |
| Model Number: | CGCC,CGCH,CGLCC,CGLCH,G550,DX51D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25 TONS |
|---|---|
| Price: | negotiated |
| Packaging Details: | Standard exporting package. waterproof paper, high density PE film,iron sheet with metal edge protectors, strapped with metal bands, 4 bands horizontal with 3 bands vertical |
| Delivery Time: | 20-35days |
| Payment Terms: | L/C, T/T, D/P |
| Supply Ability: | 3000 Tons per month |
|
Detail Information |
|||
| Product Name: | Printing Color Coated Steel / Printing Prepainted Gavanised Steel Coil For Roofing ,buildings And Etc | Thickness: | 0.12-1.0mm |
|---|---|---|---|
| Width: | Under 1500mm | Grade: | DX51D,DX52D,CGCC,CGLCC,CGCH |
| Zinc Coating: | Z30-Z275 | Length: | Customized |
| Shape: | Coil, Flat, Corrugated | Coil Weight: | As Customers'requirements |
| Highlight: | DX52D PPGI Steel Coil,HUIYI 0.12mm galvanised steel coil,HUIYI Z275 PPGI Steel Coil |
||
Product Description
Printing color coated steel ,Printing prepainted Gavanised Steel coil /plate/sheet for decoration
It is made by taking gavalume sheet and alloy gavalume sheet as the substrate through surface pretreatment, coating one or more layers of liquid coating by roll coating, baking and cooling. The used coatings including polyester, silicon modified polyester, high-durability polyester, polyvinylidene fluoride, epoxy and high corrosion-resisting coating are widely used for building, transport, home appliances, solar energy, furniture, etc. It is mainly used as the side door plate of refrigerators, and shell of DVDs, air conditionings, freezers, and washing machines.
Color coated steel plate is a new type of building material that has been rapidly developed in the world in the past 30 years. It is refined by chemical pretreatment, primary coating, color coating and other processes on a continuous unit. The coating quality is much more uniform, stable and ideal than that of single-piece spraying or brushing on the formed metal surface.
Featured by excellent decoration, formability, corrosion resistance and strong coating adhesion, the color coated steel plate can keep the novel color for a long time. Therefore, the color coated steel plate can obtain good economic effects such as replacing wood with steel, efficient construction, energy conservation, pollution prevention, etc., and become an ideal material for manufacturing building plates today.
| Production line | Product thickness mm | Product width mm | Steel coil weight (t) | Steel coil inner diameter mm | Production capacity |
| (10,000t/year) | |||||
| Printing PPGI | 0.12-1.0mm | 800-1,250 | ≤28 | 508 or 610 | 5 |
Mechanical properties for base material:
| No. | Tensile test | ||||||
| Yield strength | Tensile strength | Percentage elongation after fracture A% | |||||
| Rel (MPa) | Rm (MPa) | 1.8～＜2.0 | 2.0～＜2.5 | 2.5～＜3.2 | 3.2～＜4.0 | ≥4.0 | |
| SPHC | ≥270 | ≥29 | ≥30 | ≥31 | ≥32 | ≥32 | |
| SPHD | ≥270 | ≥32 | ≥33 | ≥35 | ≥37 | ≥39 | |
| SPHE | ≥270 | ≥33 | ≥35 | ≥37 | ≥39 | ≥41 | |
| SS330 | ≥205 | 330～430 | ≥26 | ||||
| SS400 | ≥245 | 400～510 | ≥21 | ||||
| SAPH310 | ≥ | ||||||
| SAPH370 | ≥370 | ≥255 | ≥32 | ||||
| SAPH400 | ≥ | ||||||
| SAPH440 | ≥ | ||||||

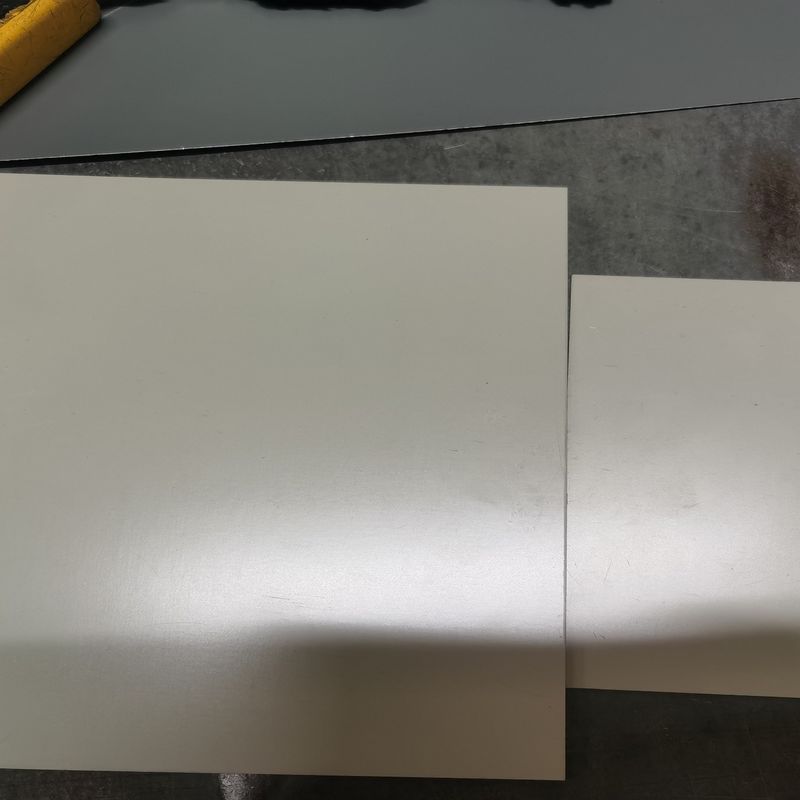

Some cases as below:
