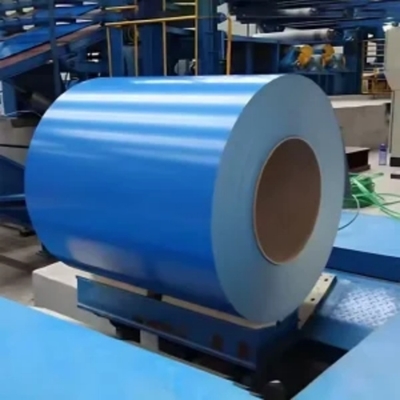

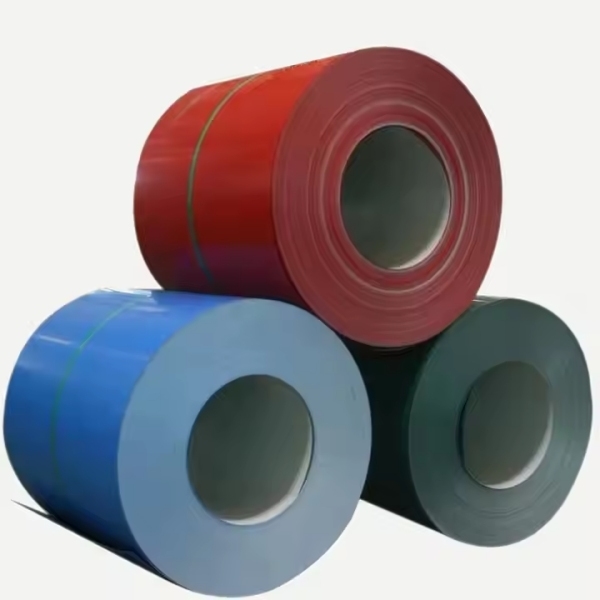

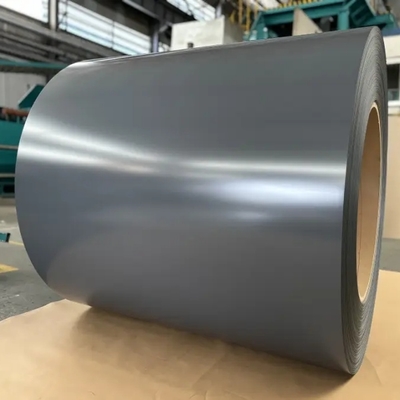

120g+ Coating Anti-corrosion Prepainted Galvalume Steel Coil For Building
Product Details:
| Place of Origin: | China |
| Brand Name: | HuiYi-PPGL |
| Certification: | ASTM, JIS, GB/T |
| Model Number: | CGLCC,G550 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25MT |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Exporting Packing with 3layers including the waterproof plastic film，Waterproof paper - plastic film-metal wrap. |
| Delivery Time: | 15-30 Days |
| Payment Terms: | T/T,L/C,D/P |
| Supply Ability: | 5000MT/Month |
|
Detail Information |
|||
| Product Name: | PPGL Steel Coil | Material: | Galvalume Steel Coil |
|---|---|---|---|
| Size: | (0.2-1.5)mm × (600-1250)mm | Color: | RAL+Architectural Shades |
| Coating Type: | PE,AKZO,SMP,HDP | Zinc Coating: | AZ80-AZ120 |
| Coating Thickness: | 15-25μm | Base Material: | Galvalume Steel Coils |
| Salt Spray Resistance: | 1,000hrs (ASTM B117) | Wind Uplift Rating: | Class F (110mph+) |
Product Description
| Attribute | Value |
|---|---|
| Product Name | PPGL Steel Coil |
| Material | Galvalume Steel Coil |
| Size | (0.2-1.5)mm × (600-1250)mm |
| Color | RAL+Architectural Shades |
| Coating Type | PE,AKZO,SMP,HDP |
| Zinc Coating | AZ80-AZ120 |
| Coating Thickness | 15-25μm |
| Base Material | Galvalume Steel Coils |
| Salt Spray Resistance | 1,000hrs (ASTM B117) |
| Wind Uplift Rating | Class F (110mph+) |
Engineered for critical building protection, our 120g/m² coated anti-corrosion prepainted galvalume steel coil delivers unmatched defense against harsh environments. Featuring a triple-layer shield - 55% Al-Zn alloy substrate (AZ80-AZ120), heavy 120g/m² polymer coating (PE/SMP/HDP), and anti-fingerprint surface - it outperforms standard building coils with 2X longer service life in coastal/industrial zones. Certified for structural applications up to 200m heights.
| Parameter | Specification |
|---|---|
| Coating Weight | 120g/m² (min) |
| Zinc Coating | AZ80-AZ120 |
| Thickness | 0.2-1.5mm (±0.03mm) |
| Tensile Strength | 320-550 N/mm² |
| Salt Spray Test | 1,000hrs (ASTM B117) |
| Wind Uplift | Class F (ASTM D3161) |
| Thermal Shock | 50 cycles (ISO 6270) |
- Industrial Roofing Systems: Corrosion-resistant standing seam roofs for factories/warehouses
- Commercial Curtain Walls: High-rise cladding with 30-year color warranty
- Structural Framing: Load-bearing columns & beams in corrosive environments
- Parking Garage Systems: Impact-resistant panels with anti-skid surfaces
- HVAC Ducting: Mold-resistant interior linings for hospitals/labs
- Coatings: PE (economical), SMP (15yr warranty), HDP (25yr warranty)
- Colors: 200+ RAL/Pantone architectural shades + metallic finishes
- Surface Textures: Anti-fingerprint (standard), Stucco, Woodgrain, Embossed
- Edge Processing: Mill edge (coiled), Trimmed edge (sheet cutting)
- Special Treatments: Back-painting for thermal insulation
Military-Grade Protection:
- VCI Nano-Rust Paper: Releases corrosion inhibitors during transit
- 0.3mm PE Waterproof Film: Sealed with moisture indicator strips
- Custom Steel Cradles: Prevents edge damage during crane loading
Climate Solutions:
- Desiccant bags (tropical regions)
- Anti-condensation film (-30°C environments)
Quality Control:
- 100% coil surface scanning before wrapping
- GPS-tracked containers with humidity sensors
A: Salt spray resistance exceeds 1,000hrs - critical for structures within 5km of coastlines.
A: Yes, 320-550 N/mm² yield strength complies with IBC 2018 seismic design Category D.
A: 22MT minimum in 21 days - sample approval within 72hrs.
A: 18-month anti-corrosion guarantee with VCI + desiccant combo.
A: Use ASTM C1513-compliant fasteners every 300mm for Class F wind resistance.
A: 50% thicker coating reduces maintenance costs by 40% over 20-year lifecycle.
