• Industrial Grade 41mm PPGL Roof Sheets Featuring High Solar Reflectivity
  • Industrial Grade 41mm PPGL Roof Sheets Featuring High Solar Reflectivity
  • Industrial Grade 41mm PPGL Roof Sheets Featuring High Solar Reflectivity
Industrial Grade 41mm PPGL Roof Sheets Featuring High Solar Reflectivity

Industrial Grade 41mm PPGL Roof Sheets Featuring High Solar Reflectivity

Product Details:

Place of Origin: China
Brand Name: HuiYi-PPGL
Certification: ASTM, JIS, GB/T
Model Number: CGLCC,G550

Payment & Shipping Terms:

Minimum Order Quantity: 25MT
Price: Negotiation
Packaging Details: VCI paper + 0.3mm PE film + Steel-reinforced corners on wooden pallets (max. 5-ton bundles)
Delivery Time: 15-30 Days
Payment Terms: T/T,L/C,D/P
Supply Ability: 5000MT/Month
Get Best Price Contact Now

Detail Information

Product Name: PPGL Steel Roofing Sheets Material: Galvalume Steel Coil
Sheet Thickness: 0.4-0.7mm (±0.03mm) Sheet Width: 1,000-1,250mm
Color: RAL+Architectural Shades Coating Type: PE, SMP, HDP
Zinc Coating: AZ100-AZ150 Max Span: 3.5m (unsupported)
Salt Spray Resistance: 1,000hrs (ASTM B117) Wind Uplift Rating: Class F (110mph+)
Highlight:

PPGL steel roofing sheets

,

pre-engineered PPGL roofing

,

building PPGL steel sheets

Product Description

Industrial Grade 41mm PPGL Roof Sheets Featuring High Solar Reflectivity
Product Specifications
Attribute Value
Product Name PPGL Steel Roofing Sheets
Material Galvalume Steel Coil
Sheet Thickness 0.4-0.7mm (±0.03mm)
Sheet Width 1,000-1,250mm
Color RAL+Architectural Shades
Coating Type PE, SMP, HDP
Zinc Coating AZ100-AZ150
Max Span 3.5m (unsupported)
Salt Spray Resistance 1,000hrs (ASTM B117)
Wind Uplift Rating Class F (110mph+)
Product Description

Engineered for superior performance in industrial construction, our Pre-Engineered PPGL Steel Roofing Sheets deliver exceptional durability with 41mm corrugated profiles optimized for maximum structural integrity. Featuring a robust 120g/m² coating (PE/SMP/HDP options) over an AZ100-AZ150 galvalume base, these sheets exceed 1,000 hours in ASTM B117 salt spray tests to resist corrosion in coastal/industrial environments.

The integrated anti-fingerprint nano-layer maintains aesthetic quality in polluted areas, while Class 1 color retention (ISO 12944) ensures long-term visual appeal. Certified for Class F wind uplift (ASTM D3161) and IBC 2018 seismic compliance, these sheets support spans up to 3.5m unsupported. Ideal for warehouses, factories, and agricultural buildings, they combine heavy-duty protection with industry-leading 25-year performance warranties.

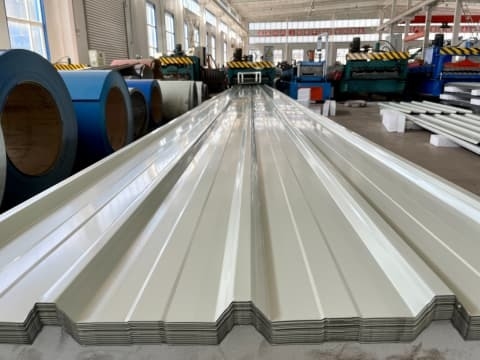

Industrial Grade 41mm PPGL Roof Sheets Featuring High Solar Reflectivity 0
Technical Parameters
Parameter Specification
Profile Height 41mm (optimized drainage)
Coating Weight 120g/m² (min)
Zinc Coating AZ100-AZ150
Sheet Thickness 0.4-0.7mm (±0.03mm)
Sheet Width 1,000-1,250mm
Tensile Strength 340-550 N/mm²
Color Retention Class 1 (ISO 12944)
Max Span 3.5m (unsupported)
Thermal Reflectivity 85% (EN 14509)

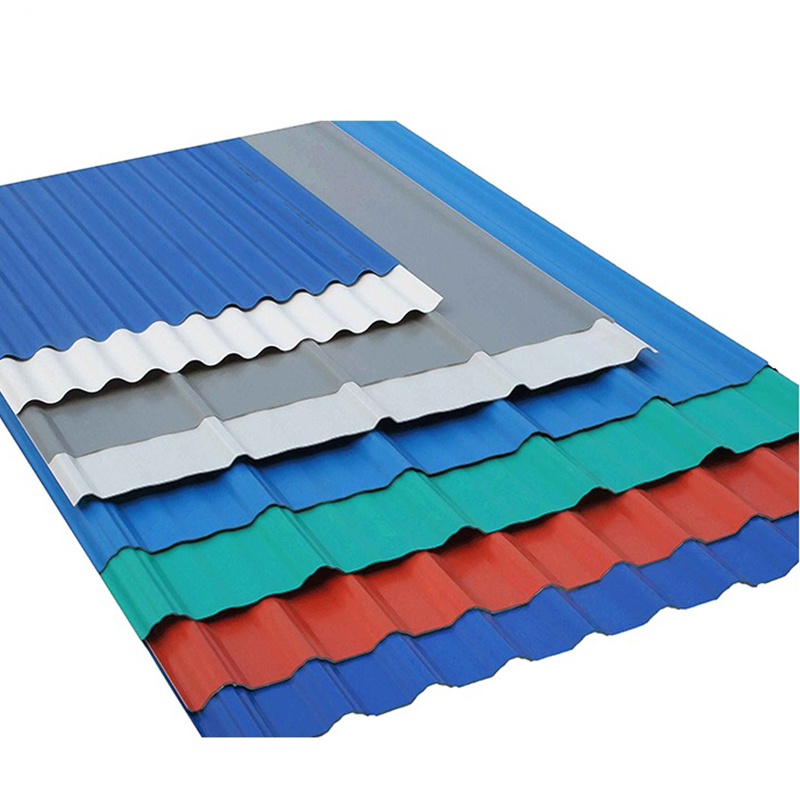

Industrial Grade 41mm PPGL Roof Sheets Featuring High Solar Reflectivity 1
Applications
  • Industrial Roofing Systems: Corrosion-resistant standing seam roofs with enhanced load-bearing capacity for factories and warehouses.
  • Agricultural Storage: SMP coating resists ammonia corrosion in livestock barns, with reinforced ridge caps for heavy snow regions.
  • Commercial Complexes: Pre-painted sheets with fire-retardant cores (EN 13501 Class B) for shopping malls and office buildings.
  • Disaster Relief Housing: Pre-cut 2.4m lengths with interlocking seams for rapid deployment in emergency scenarios.
Customization Options
  • Coatings: PE (economical), SMP (15-year warranty), HDP (25-year warranty).
  • Colors & Textures: 100+ RAL shades + Woodgrain/Stucco embossing (slip resistance = DIN 51130 Class R10).
  • Edge Processing: Mill edge or trimmed edge options with optional PVC edge protectors.
  • Special Features: Anti-condensation backing for humidity control in tropical climates.
Packing and Shipping
  • Triple-Protection Bundling: VCI anti-corrosion paper inner layer, 0.3mm reinforced PE waterproof film, steel-strapped wooden pallets (max. 5-ton capacity).
  • Climate Adaptations: Desiccant bags (40g/m³) for humid regions, thermal-insulated wrapping for sub-zero transport.
  • Smart Tracking: QR-coded labels with real-time GPS container monitoring.

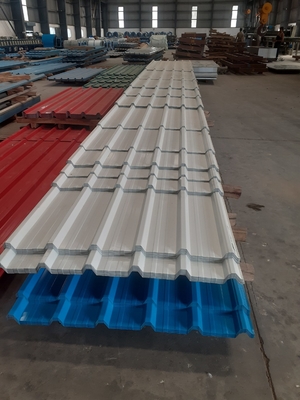

Industrial Grade 41mm PPGL Roof Sheets Featuring High Solar Reflectivity 2
Frequently Asked Questions
Q: Why choose 41mm corrugation?
A: Maximizes rainwater runoff capacity (+200L/min/m²) while providing optimal strength-to-weight ratio.
Q: Maintenance requirements?
A: Self-cleaning coating reduces maintenance to biennial inspections in normal conditions.
Q: MOQ for custom projects?
A: 15 tons standard, with 3-ton sample batches available for testing.
Q: Coastal performance guarantee?
A: 25-year anti-perforation warranty backed by ISO 9227 C5-M certification.
Q: Thermal efficiency data?
A: Reflects 85% solar radiation (reducing indoor temps by 8°C vs. standard GI sheets).
Q: Fire safety rating?
A: Achieves EN 13501 Class B-s1,d0 fire resistance with optional fire-retardant cores.
Q: What is your working time?
A: In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry in the coming working day.
