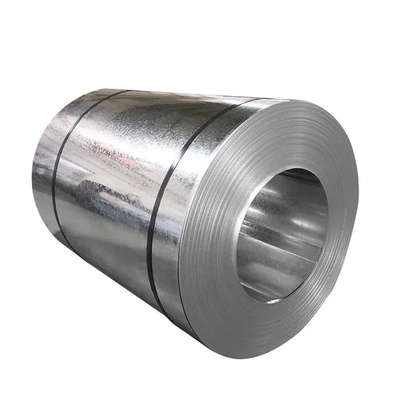

ASTM G90 Galvanized Steel Coil | 275g/m² Marine Armor
Product Details:
Place of Origin: | China |
Brand Name: | HuiYi-GI |
Certification: | ASTM, JIS, GB/T |
Model Number: | DX51D, SGCC, S350GD, S550GD |
Payment & Shipping Terms:
Minimum Order Quantity: | 25MT |
---|---|
Price: | Negotiation |
Packaging Details: | VCI kraft paper + 0.3mm PE film + Steel-strapped pallets with edge guards (max. 8-ton coils) |
Delivery Time: | 15-30 Days |
Payment Terms: | T/T,L/C,D/P |
Supply Ability: | 5000MT/Month |
Detail Information |
|||
Product Name: | ASTM G90 Galvanized Steel Coil | Material: | High-Strength Steel Coil |
---|---|---|---|
Sheet Thickness: | 0.12mm - 4.0mm (±0.02mm) | Sheet Width: | 600mm - 1,500mm (±2mm) |
Tensile Strength: | 320-550 MPa | Surface Treatment: | Chromated/Oiled |
Salt Spray Resistance: | 1,000hrs (ASTM B117) | Corrosion Warranty: | 25-year Anti-perforation |
Product Description
Attribute | Value |
---|---|
Product Name | ASTM G90 Galvanized Steel Coil |
Material | High-Strength Steel Coil |
Sheet Thickness | 0.12mm - 4.0mm (±0.02mm) |
Sheet Width | 600mm - 1,500mm (±2mm) |
Tensile Strength | 320-550 MPa |
Surface Treatment | Chromated/Oiled |
Salt Spray Resistance | 1,000hrs (ASTM B117) |
Corrosion Warranty | 25-year anti-perforation |
Engineered for harsh environments, our ASTM G90 Galvanized Steel Coil delivers extreme corrosion resistance with a robust 275g/m² zinc coating (equivalent to Z275 per ISO standards), forming a 38.5μm protective layer that withstands 1,000+ hours in salt spray tests (ASTM B117). The hot-dip galvanization process bonds zinc to a high-strength steel base (Grades: DX51D, SGCC, S350GD), ensuring decades of service in coastal, industrial, and high-humidity zones. Certified to ASTM A653, JIS G3302, and EN 10142, this coil is ideal for critical infrastructure demanding longevity with minimal maintenance.

Parameter | Specification |
---|---|
Zinc Coating | 275g/m² (G90/Z275, min. 38.5μm) |
Thickness Range | 0.12mm - 4.0mm (±0.02mm) |
Width Range | 600mm - 1,500mm (±2mm) |
Coil Weight | 3 - 8 Tons (ID: 508/610mm) |
Tensile Strength | 320-550 MPa (Grade-Dependent) |
Spangle Options | Regular, Minimal, Zero |
Surface Treatment | Chromated/Oiled (Anti-Fingerprint) |

- Coastal Infrastructure: Bridge components, seawalls, and port facilities leveraging 25-year anti-perforation warranty (ISO 9227 C5-M).
- Industrial Roofing & Siding: Corrugated sheets for factories in corrosive zones (ammonia/salt resistance).
- High-Strength Structural: Solar farm mounts, transmission towers (Grades S350GD+Z, Yield: ≥350MPa).
- Automotive & Appliances: Chassis parts, HVAC ducts, and appliance housings (formability: DC53D+Z for deep drawing).

- Material Grades: DX51D (general use), DX53D (deep drawing), S550GD (structural).
- Zinc Coating: 30-600g/m² (adjustable for indoor/outdoor use).
- Surface Finishes: Zero-spangle (smooth painting base), anti-fingerprint, woodgrain embossing.
- MOQ: 25 tons (standard), 5 tons for logo/texture customization.
Triple-Shield Packaging:
- VCI anti-rust kraft paper inner layer
- 0.3mm PE waterproof film with moisture indicators
- Steel-strapped pallets + edge guards (max. 8-ton coils)
Global Logistics: FOB/CIF from Chinese ports; 15-day delivery for Asia, 30 days globally.
